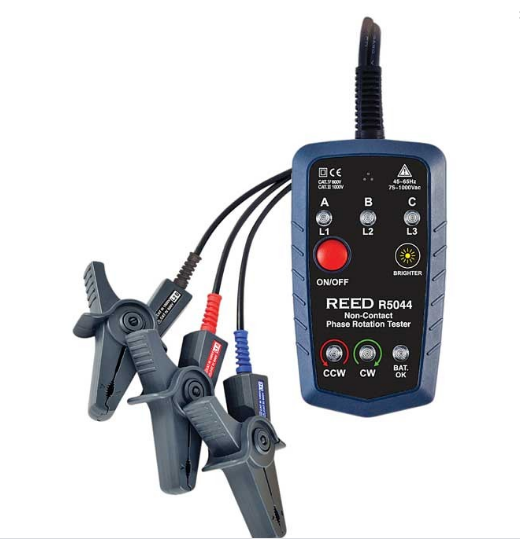

REED R5044 Non-Contact Phase Rotation Tester

Name: REED R5044 Non-Contact Phase Rotation Tester
Brand: REED Instruments
SKU: R5044
Availability: OutOfStock

Part Number : R5044

This motor rotation and 3-phase tester is capable of identifying phase orientation (clockwise or counter-clockwise). The R5044 features non-metal alligator clips that allow for safe non-contact measurements and includes back mounted magnets for easy measurement.

Availability: Sold out

Specifications
Features
Downloads

Auto shut-off	Yes (after 5 minutes without power detection)
Dimensions	5 x 2.8 x 1.8
Frequency (Hz)	45 to 65Hz
Low Battery Indicator	Yes
Operating Humidity Range	10 to 80%
Operating Temperature	14 to 122°F (-10 to 50°C)
Power Supply	9V battery
Storage Temperature	-4 to 140°F (-20 to 60°C)
Weight	13.2 oz (375 g)

Non-contact voltage sensing alligator clips promote safety
Color-coded leads (red, black, blue) meet IEC 60446 standards
LEDs indicate phase orientation (clockwise or counter-clockwise) and whether each phase is live
Adjustable LED brightness allows for measurement in sunlight and lowly lit environments
Beeper sounds intermittently when detecting correct phase and continuously for a reversed phase
Durable housing with magnets frees hands and allows for easy measurement
Low battery indicator
