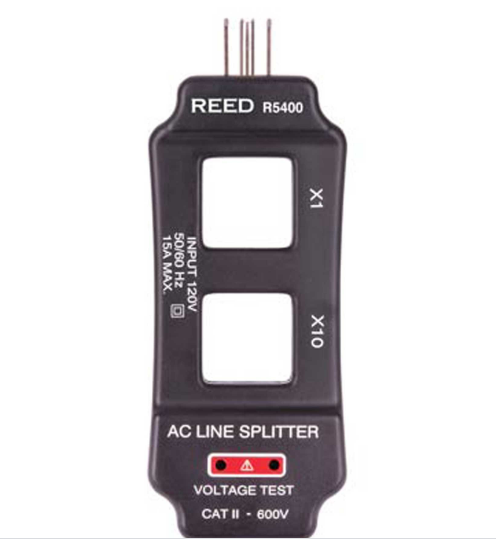

REED R5400 | AC Line Splitter | 15 A, 120 V
Part Number : R5400
The REED R5400 AC line splitter lets a clamp meter measure AC current on a 2-wire or 3-wire power cord up to 15 A, at 120 V.
- For use with a clamp meter
- 2-wire or 3-wire power cords
- AC current up to 15 A
- 120 V rating
- CE, 165 g
For pricing, please contact our experts.
- Specifications
- Features
- Downloads
| Part Number | R5400 |
| Brand | REED |
| Max Current | 15 A |
| Cord Type | 2-wire or 3-wire |
| Operating Humidity Range | 0 to 85% |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Product Certifications | CE |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Voltage | 120V |
| Weight | 5.8oz (165g) |
- Enables user to measure AC current on a 2-wire or 3-wire power cord to 15A
- Fits clamp jaw size 0.75" (19mm) and above
- Plugging the power connector into the line splitter separates the hot/live conductor from the neutral (and ground)
- Two measurement sensitivity positions (1X and 10X)
- Voltage check function
- Cat. II 600V safety rating
