REED R8090 | Sound Level Calibrator | 94/114 dB at 1 kHz

Name: REED R8090 | Sound Level Calibrator | 94/114 dB at 1 kHz
Brand: REED Instruments
SKU: R8090
Availability: InStock

Part Number : R8090

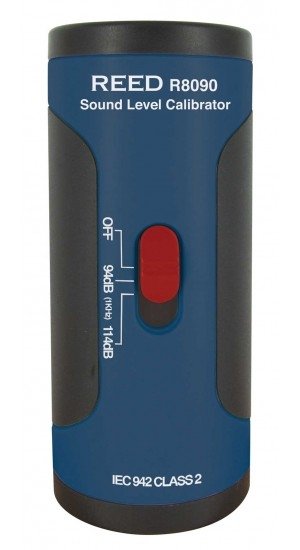

The REED R8090 produces a stable acoustic signal at 1000 Hz with two output levels, 94 dB and 114 dB, to check the accuracy of sound level meters with 1/2" large-diameter microphones. Fit it over the microphone, switch on the meter and adjust to the reference level.

IEC 942 Class 2 compliance
Accuracy ±0.5 dB; frequency 1000 Hz ±4%
9V battery
CE marked
120 x 51 x 43 mm, 130 g

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Part Number	R8090
Brand	REED
Accuracy	±0.5dB
Operating Humidity Range	0 to 80%
Operating Temperature	32 to 104°F (0 to 40°C)
Output Frequency Range (Hz)	1000Hz ±4%
Output Sound Pressure	2 levels (94dB and 114dB)
Power Supply	9V Battery
Microphone Size	1/2"
Standard	IEC 942 Class 2
Dimensions	4.7 x 2 x 1.7" (120 x 51 x 43 mm)
Product Certifications	CE
Storage Temperature	-4 to 140°F (-20 to 60°C)
Weight	4.6oz (130g)

Calibration checks on metres are always a good idea, and for many applications, they are required. Before taking measurements, most rules, such as the Noise at Work Regulations, require that the metre be calibrated. These calibrations should be documented to show that the proper processes were followed.
