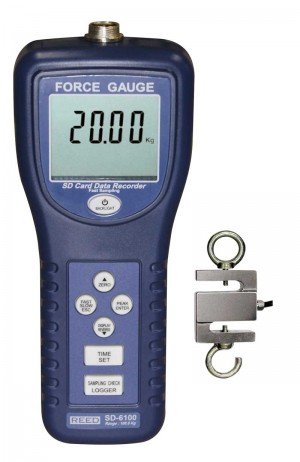

REED SD-6100 Data Logging Force Gauge, 220lbs (100kg)
This gauge can measure push and pull forces up to 220 pounds (100 kilogrammes) and has a reversible display that makes measurements easy to read regardless of testing direction. A real-time datalogger with a memory card slot is included with the SD-6100. A user can set a suitable sampling rate and instantly generate an Excel file on an SD card without the need of software by using an SD card (max 16Gb). An AC adaptor for long-term monitoring and PC software to track real-time measurements are available as optional accessories.

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | +/-(0.5% rdg + 2 dgt.) |
Dimensions | 215 x 90 x 45mm (8.5 x 3.5 x 1.8") |
Display | 4-digit LCD |
Measuring range | 100kg |
Operating Humidity Range | 10 to 85% |
Operating Temperature | 0 to 122°F (0 to 50°C) |
Resolution | 0.15 kg/0.02 lb/0.02 N |
Response Time | Less than 1 sec. |
Storage Temperature | 14 to 140°F (-10 to 60°C) |
Weight | 1.43 lb (650 g) |
Measures tension and compression
Records in Peak hold or Normal mode
Fast/Slow response selection
Full capacity tare (zero) capability
Force is measured in kg, lb or Newtons
Easy-to-read backlit display
Reversible display ensures legible readings regardless of direction
Real-time datalogger with integral SD memory card
User selectable sampling rate from 1 to 3600 seconds
Optional PC software features live tracking via USB connection
Low battery indicator and auto shut off
Related Products

MARK 10 M5-500 FORCE GAUGE| 500 LBF / 8000 OZF / 250 KGF / 2500 N / 2.5 KN CAPACITY FORCE GAUGE

MARK 10 M5-500 FORCE GAUGE| 500 LBF / 8000 OZF / 250 KGF / 2500 N / 2.5 KN CAPACITY FORCE GAUGE

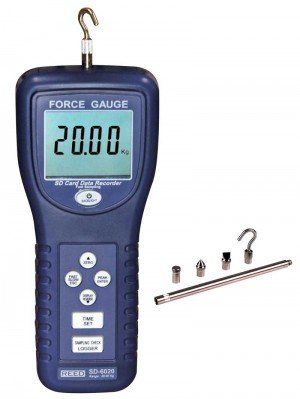

REED SD-6020 Data Logging Force Gauge, 44lbs (20kg)
