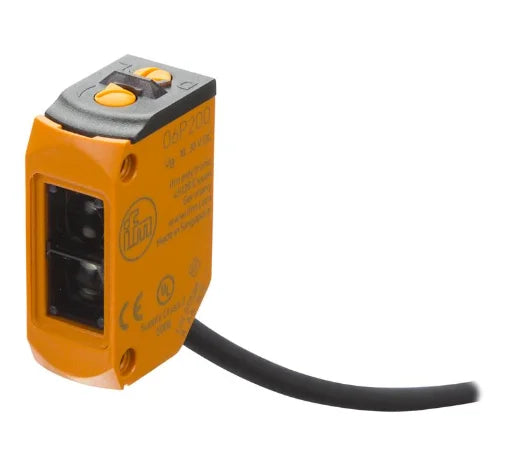

Retro–reflective sensor ifm electronic O6P200 - O6P-FPKG
The compact retro-reflective sensor O6P200 - O6P-FPKG from ifm electronic is characterised by a plastic housing with protection rating IP65/IP67, light-on/dark-on mode and a range of 0.05-5 m (prismatic reflector Ø 80 E20005). The retro-reflective sensor O6P200 is easily set via potentiometer. Thanks to the transparent black housing the LEDs for operating and switching status indication are clearly visible even in bright light. The O6P200 retro-reflective sensor with a 2.0 m (3 x 0.25 mm²) long PUR cable is the perfect solution for use in conveyor systems.
- Specifications
- Features
- Downloads
| Current consumption [mA] | 12; ((24 V)) |
| Electrical design | PNP |
| Housing | rectangular |
| Light Source | red light |
| Operating voltage [V] | 10-30 DC V |
| Output function | light-on/dark-on mode |
| Overload protection | yes |
| Reverse polarity protection | yes |
| Short-circuit protection | yes |
| Switching frequency DC [Hz] | 1000 Hz |
- Particularly compact housing for use where space is restricted
- Very long range independent of the object color
- Intuitive setting of the sensitivity via potentiometer
- User-friendly selection of light-on or dark-on via rotary switch
- Excellent price/performance ratio
