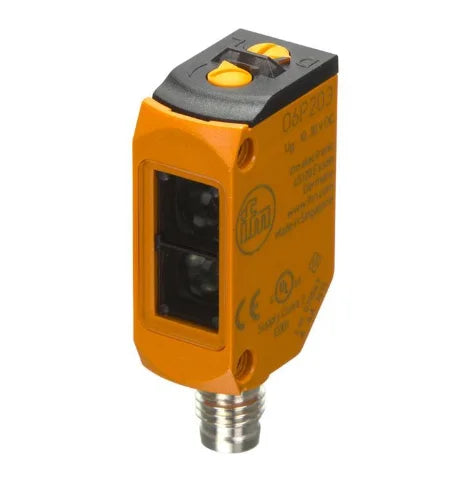

Retro–reflective sensor ifm electronic O6P203 - O6P-FPKG/AS/4P
The compact retro-reflective sensor with polarisation filter O6P203 - O6P-FPKG/AS/4P from ifm electronic is characterised by a plastic housing with protection rating IP65/IP67, light-on/dark-on mode and a range of 0.05-5 m (prismatic reflector Ø 80 E20005). The retro-reflective sensor O6P203 is easily set via potentiometer. Thanks to the transparent black housing the LEDs for operating and switching status indication are clearly visible even in bright light. The O6P203 retro-reflective sensor with a 4-pole M8 connection is the perfect solution for use in conveyor systems.
- Specifications
- Features
- Downloads
| Current consumption [mA] | 12; ((24 V)) |
| Electrical design | PNP |
| Housing | Rectangular |
| Light Source | red light |
| Operating voltage [V] | 10-30 DC V |
| Output function | light-on/dark-on mode; (selectable) |
| Reverse polarity protection | yes |
| Short-circuit protection | yes |
| Switching frequency DC [Hz] | 1000 Hz |
| System | Polarization filter |
- Particularly compact housing for use where space is restricted
- Very long range independent of the object color
- Intuitive setting of the sensitivity via potentiometer
- User-friendly selection of light-on or dark-on via rotary switch
- Excellent price/performance ratio
