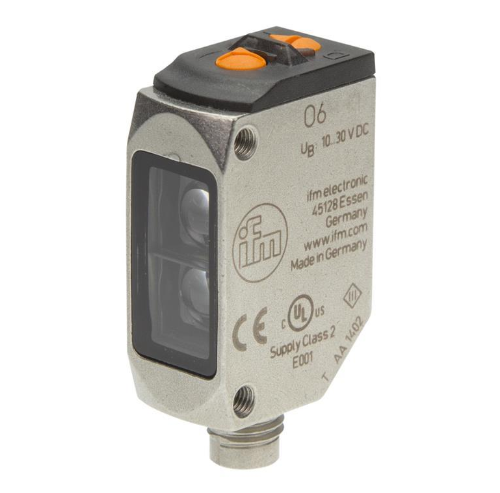

Retro-reflective sensor ifm electronic O6P302 - O6P-FPKG/AS/3P
The compact retro-reflective sensor O6P302 – O6P-FPKG/AS/3P from ifm is characterised by a robust stainless steel housing with the protection rating IP65/IP67/IP68/IP69K, a polarisation filter and light-on/dark-on mode. The range is 0.05-5 m. The retro-reflective sensor O6P302 – O6P-FPKG/AS/3P is easily set via potentiometer. The double seal of the potentiometer and the flush front lens made of shatterproof plastic allow cleaning without residue. Thanks to the transparent black housing the LEDs for operating and switching status indication are clearly visible even in bright light. The retro-reflective sensor O6P302 – O6P-FPKG/AS/3P with 3-pole M8 connector is the perfect solution for use in the food industry.
- Specifications
- Features
- Downloads
| Current consumption [mA] | 12; ((24 V)) |
| Dimensions | 41.3 x 13 x 21mm |
| Electrical design | PNP |
| Housing | rectangular |
| Operating voltage [V] | 10-30 DC V |
| Output function | light-on/dark-on mode; (selectable) |
| Reverse polarity protection | yes |
| Short-circuit protection | yes |
| Switching frequency DC [Hz] | 1000 Hz |
| System | Polarization filter |
- Robust stainless steel housing for use in the food and beverage industry
- Resistant to high-pressure cleaning with aggressive cleaning agents
- High protection rating for the requirements of harsh industrial environments
- Very long range independent of the object color
- Intuitive setting of sensitivity and output function
