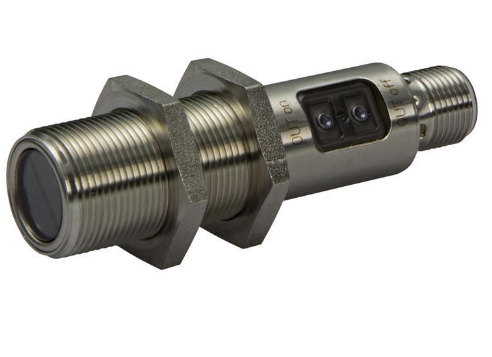

Retro-reflective sensor ifm electronic OGP500 - OGP-FPKG/US
The retro-reflective sensor OGP500 - OGP-FPKG/US from ifm is characterised by a robust stainless steel housing with protection rating IP67. The retro-reflective sensor OGP500 - OGP-FPKG/US that is set via teach buttons has a range of 0.03-5 m and programmable light-on/dark-on mode. The long range allows a reliable solution of your application. The retro-reflective sensor OGP500 - OGP-FPKG/US with M12 connector is ideal for position detection in factory automation, packaging and conveying.
- Specifications
- Features
- Downloads
| Current consumption [mA] | 20 |
| Electrical design | PNP |
| Housing | threaded type |
| Light Source | red light |
| Operating voltage [V] | 10-36 DC V |
| Output function | light-on/dark-on mode; (programmable) |
| Overload protection | yes |
| Reverse polarity protection | yes |
| Short-circuit protection | yes |
| Switching frequency DC [Hz] | 2000 Hz |
- Robust stainless steel housing for use in harsh industrial environments
- Very long range
- Intuitive sensitivity adjustment with pushbutton
- Wide range of fixing components for quick and easy mounting
- Programmable light-on/dark-on mode
