Sauermann Flush-mount multifunction pressure transmitter | Range -1000 to +1000 Pa

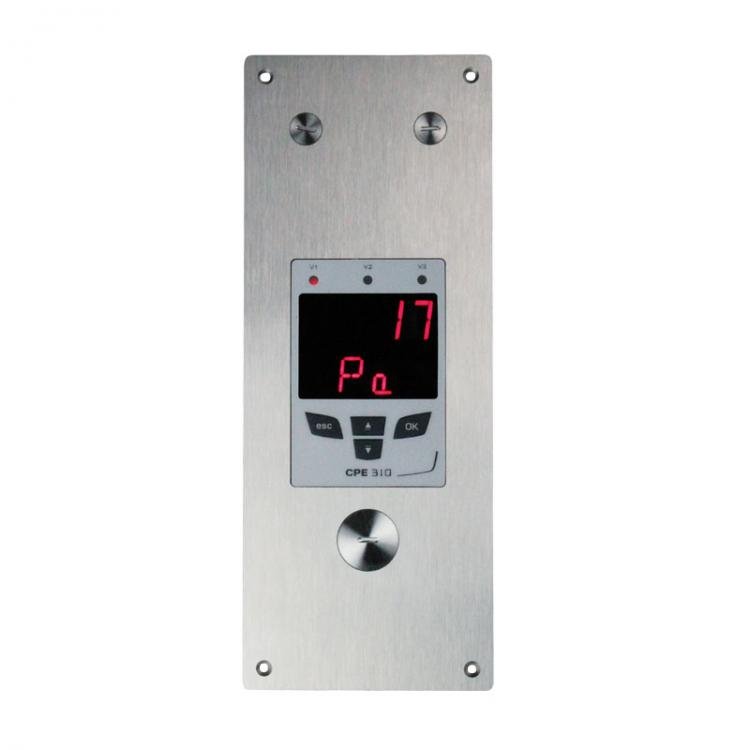

The CPE 311-S by Kimo is a flushmount multifunction pressure sensor. It can alternately display up to three parameters.

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | +/-0.2% of reading +/-2 Pa |
Display | Electroluminescent alphanumeric (38 x 48 mm) Protection screen made of inactinic red PMMA |
Measuring range | -1000 to +1000 Pa |
Operating Temperature | -10 to +50 °C |
Protection | IP65 in front face |
Resolution | 1 Pa, 0.1 mmH2 O, 0.01 mbar, 0.01 inWG, 0.01 mmHG, 0.1 daPa, 0.01 hPa |
Response Time | 1/e (63 %) 0.3 s |
Storage Temperature | -10 to +70 °C |
Weight | 640 g |
Front face differential pressure calibration
• Alternating display of 1 to 3 parameters
• Configurable measuring ranges
• Front face keypad allowing to configure the transmitter and acknowledge the alarm
• 3 analogue outputs 0-5/10 V or 0/4-20 mA
• High resolution in pressure on model -100/+100 Pa (ex: 0.1 Pa) (optional)
• Outputs diagnostic
• Front face made of brushed stainless steel with electroluminescent display
