SMC AS1201F-M3-04 | Flow Contoller | Series AS | Port Size M3 x 0.5 | Tube Size 4mm

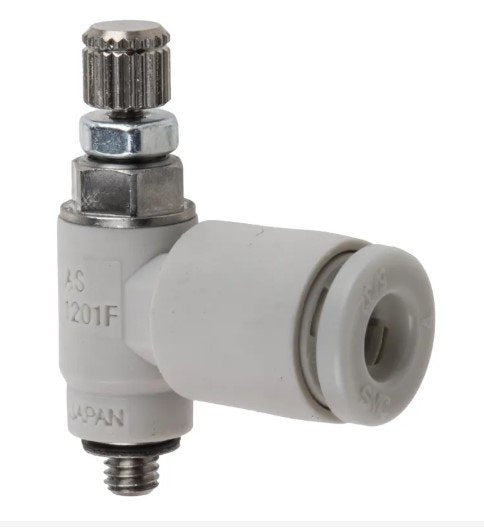

The SMC AS1201F-M3-04 is a flow controller from the AS series, designed for precise flow regulation in pneumatic systems. It features an M3 x 0.5 port size and is compatible with 4mm tubing, making it ideal for compact installations. This flow controller allows accurate control of airspeed, even at low velocities, ensuring consistent and reliable performance. Its durable design ensures long-lasting use in a variety of industrial applications, offering excellent control and efficiency in fluid flow systems.
- Specifications
- Features
- Downloads
| Application | Standard |
| Control Type | Meter-Out |
| Diameter | 3ƒ-0.5 |
| Material | PBT |
| Orifice | 4mm |
| Port Type | Inlet: Threaded |
| Port Type | Outlet: Threaded, Tube |
| PRESSURE | Outlet: Maximum: 1MPa |
| PRESSURE | Outlet: Minimum: 0.1MPa |
| Series | AS |
| Thread size | Inlet: M3 x 0.5 |
| Thread size | Outlet: M3 x 0.5 |
| Thread Standard | Inlet: Metric |
| Thread Standard | Outlet: Metric |
| Thread type | Inlet: M3 x 0.5 Male |
| Thread type | Outlet: M3 x 0.5 Male |
| Tube | Outlet: 4mm |
| Type | Flow Contoller |
| Weight | 5.4g |
- M3 x 0.5 port size for compact and secure connections
- Compatible with 4mm tube size, ideal for smaller pneumatic systems
- Precise flow control for accurate regulation of airspeed
- Ideal for low-velocity control, ensuring consistent and stable performance
- Part of the AS series, designed for reliability and durability in industrial environments
- Compact design for easy integration into confined spaces
- Meter-out operation for optimal exhaust flow control
