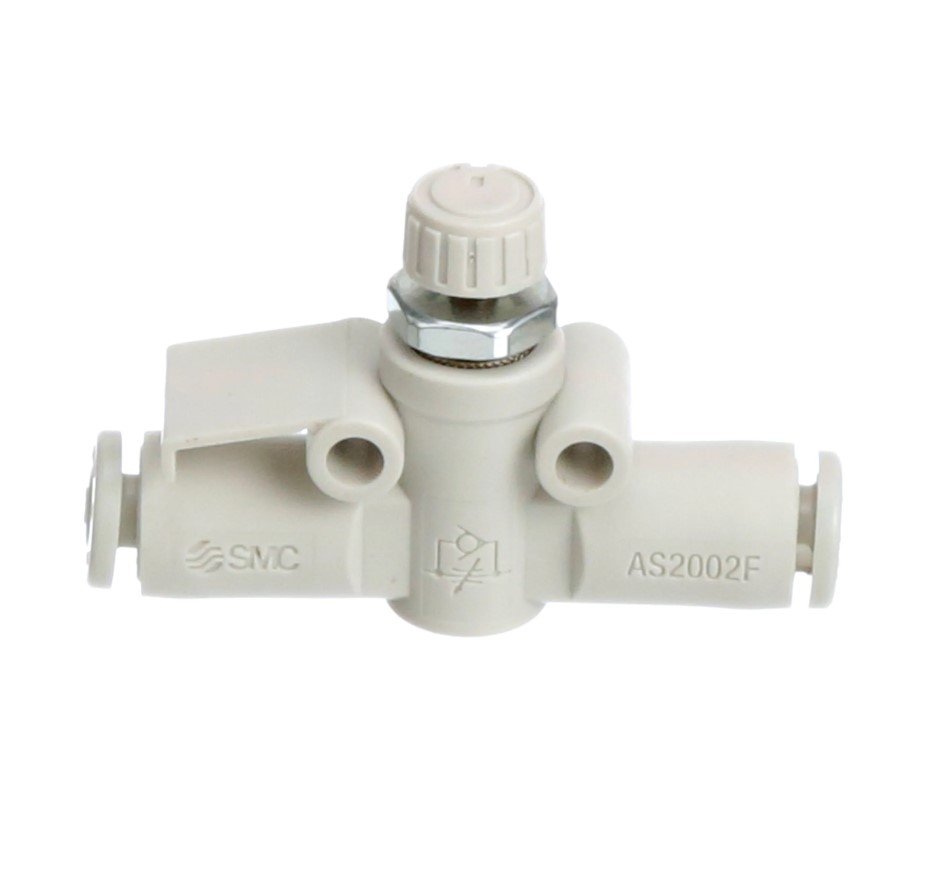

SMC AS2002F-04 | Speed Control | In-Line | Series AS | Port Size 1/8 inch | Tube Size 4 mm
Compact, in-line speed controllers of the SMC series AS2002F with integrated one-touch fittings reduce mounting height, and installation time, and allow for a more compact machine design. There are four different mounting options for these speed controls: DIN rail mounting, L-bracket mounting, holder mounting, and direct mounting. The available tube sizes are 1/8 to 1/2 OD (inch) and 3.2mm to 12mm OD (metric). The speed control series AS2002F complies with RoHS.
- Specifications
- Features
- Downloads
| Body Material | Nickel Plated Brass |
| Bolt Size | 1/8 inch |
| Fluid | Air |
| Operating pressure | 0.1 to 1 MPa |
| Port Size | 1/8 inch |
| PRESSURE | Proof: 1.5 MPa |
| Series | AS Series |
| Size | Tube: 4 mm |
| Standard | RoHs, ISO 4414, ISO 4413, IEC 60204-1, ISO 10218-1 |
| Type | Speed Controller |
| Weight | 0.02078 lb |
- In-line speed control valve, meaning it is designed to control the speed of pneumatic actuators by regulating the airflow.
- AS series, which is recognized for offering efficient airflow control with easy adjustability and reliable performance.
- 1/8 inch, which fits standard pneumatic systems and allows for proper airflow management.
- 4 mm, ensuring compatibility with specific tubing sizes used in compact systems.
- Provides precise adjustment of airflow, allowing users to fine-tune the speed of actuators in various applications.
- The small size makes it suitable for use in space-constrained environments while still offering effective performance.
- Built for long-lasting operation in demanding industrial applications.
- Typically made with materials that resist corrosion, it is ideal for a variety of environmental conditions.
