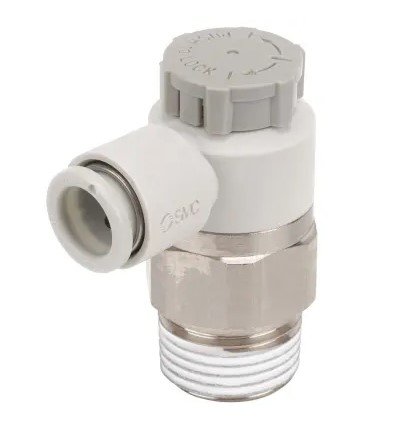

SMC AS2201F-02-04SA | Flow Controller | Series AS | Inlet Port R 1/4 | Tube Size 4mm
The SMC AS2201F-02-04SA is a flow controller from the AS Series, designed for regulating the flow of air or gases in pneumatic systems. It features an R 1/4 inlet port for easy connection to larger threaded fittings and is compatible with 4mm diameter tubing. This device ensures precise airflow control, maintaining stable pressure and flow rates to downstream components such as actuators and valves, optimizing the performance and efficiency of pneumatic systems.
- Specifications
- Features
- Downloads
| Port Type | Inlet: Threaded |
| Port Type | Outlet: Tube |
| PRESSURE | Outlet: Maximum: 1(Outlet) MPa, 1.5(Proof) MPa |
| PRESSURE | Outlet: Minimum: 0.1MPa |
| Series | AS |
| Thread size | 1/4 in |
| Thread Standard | R |
| Thread type | Inlet: R 1/4 |
| Tube | Outlet: 4mm |
| Type | Flow Controller |
| Weight | 18g |
- Series AS: Precise flow control for pneumatic systems.
- Inlet Port: R 1/4 (1/4-inch threaded inlet).
- Tube Size: Compatible with 4mm tubing.
- Adjustable Flow Control: Easy flow rate adjustment.
- Compact Design: Space-saving and efficient.
- One-Touch Fittings: Simple installation and maintenance.
- Durable and Reliable: Suitable for various industrial applications.
