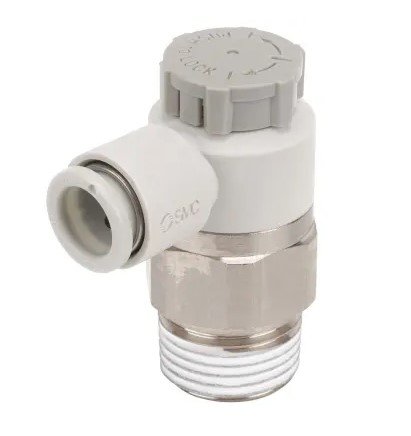

SMC AS2201F-02-10SA | Flow Controller | Series AS | Inlet Port R 1/4 | Tube Size 10mm
The SMC AS2201F-02-10SA is a flow controller from the AS Series, designed for precise flow regulation in pneumatic systems. It features an R 1/4-inch inlet port and is compatible with 10mm tubing. The unit offers adjustable flow control and includes one-touch fittings for easy installation. Ideal for space-saving applications in industrial and automation systems requiring efficient and reliable airflow management.

Free UAE shipping available
- Specifications
- Features
- Downloads
Application | Standard |
Body Material | PBT |
Control Type | Meter-Out |
Material | Thread: Brass + Electroless Nickel Plating |
Port Type | Inlet: Threaded |
Port Type | Outlet: Tube |
PRESSURE | Outlet: Maximum: 1(Outlet) MPa, 1.5(Proof) MPa |
PRESSURE | Outlet: Minimum: 0.1MPa |
Series | AS |
Thread size | 1/4 in |
Thread Standard | R |
Thread type | Inlet: R 1/4 |
Tube | Outlet: 10mm |
Type | Flow Controller |
Weight | 40g |
- Series AS: Part of SMC's AS Series, designed for precise flow control in pneumatic systems.
- Inlet Port R 1/4: Equipped with a 1/4-inch threaded inlet port for compatibility with standard pneumatic fittings.
- Tube Size 10mm: Designed for use with 10mm diameter tubing, offering flexibility in system integration.
- Adjustable Flow Control: Allows for precise adjustment of airflow to meet specific application requirements.
- One-Touch Fittings: Simplifies installation and maintenance with quick-connect fittings, reducing setup time.
- Compact Design: Space-efficient and ideal for installations with limited space.
- Durable and Reliable: Built for consistent performance and long-term reliability in industrial and automation applications.
- Wide Application: Suitable for various pneumatic systems, including robotics, automation equipment, and machine tools.
