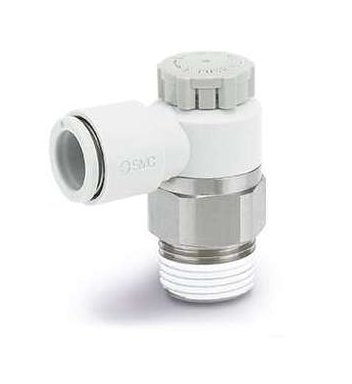

SMC AS3201F-03-10SA | Flow Controller | Series AS | Inlet Port R 3/8 | Tube Size 10mm
The SMC AS3201F-03-10SA is a flow controller from the AS Series, designed to provide precise and efficient airflow regulation in pneumatic systems. It features an R 3/8-inch inlet port, making it compatible with larger pneumatic setups. This model is designed for use with 10mm diameter tubing, offering an ideal solution for larger pneumatic circuits requiring consistent and reliable flow control.With adjustable flow control, the AS3201F-03-10SA allows fine-tuning of the airflow to meet the specific needs of various applications. The one-touch fittings simplify installation and maintenance, allowing for quick and secure connections.
- Specifications
- Features
- Downloads
| Application | Standard |
| Body Material | PBT |
| Control Type | Meter-Out |
| Material | Thread: Brass + Electroless Nickel Plating |
| Port Type | Inlet: Threaded |
| Port Type | Outlet: Tube |
| PRESSURE | Outlet: Maximum: 1(Outlet) MPa, 1.5(Proof) MPa |
| PRESSURE | Outlet: Minimum: 0.1MPa |
| Series | AS |
| Thread size | 3/8 in |
| Thread Standard | R |
| Thread type | Inlet: R 3/8 |
| Thread type | Outlet: 10mm |
| Type | Flow Controller |
| Weight | 61g |
- Series AS: Part of the AS Series, designed for accurate and reliable flow control in pneumatic systems.
- Inlet Port R 3/8: Features a 3/8-inch threaded inlet port, suitable for larger pneumatic systems.
- Tube Size 10mm: Compatible with 10mm diameter tubing, ideal for medium to large pneumatic circuits.
- Adjustable Flow Control: Allows precise adjustment of airflow to meet specific application needs.
- One-Touch Fittings: Simplifies installation and maintenance with quick and secure fittings.
- Compact and Durable: Built for long-lasting performance in industrial and automation environments.
- Versatile Applications: Suitable for use in robotics, machine tools, automation systems, and other pneumatic equipment that requires precise and reliable airflow control.
