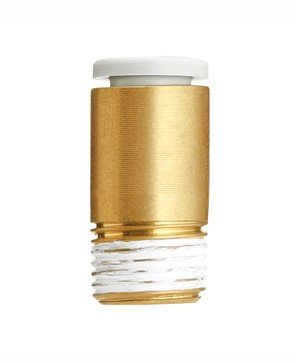

SMC KQ2S12-03S | Hexagon Socket | Fitting | Series KQ2S | Connection R 3/8 Male | Tube Size 12mm

Client Protection

Dedicated Support

Genuine Products

Client Protection

Dedicated Support

Genuine Products

Part Number : KQ2S12-03S

There are numerous sizes, body shapes, and thread types available for KQ2 one-touch, metric, and inch-size fittings. Positive sealing under pressure is achieved by the specifically made packing without the decreased flow that is typical of compression fittings. The chuck and collet are both released by the KQ2 release collar, which also offers a low disconnection force for simple tubing removal.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Functions	Hexagon socket head male connector
Length	26.4 mm
Material	PBT
Model Number	MY3 50
Operating pressure	-100 kPa to 1 MPa
Orifice	12mm
Series	KQ2S
Temperature	Maxmimum: 60 °C
Temperature	Minimum: -5 °C
Tube	A: R 3/8
Tube	B: 12mm
Type	Hexagon Socket
Type	One-touch Fitting
Weight	19g

Hexagon socket design for easy installation and secure fitting
Part of the KQ2 series, designed for quick and efficient connections
R 3/8 male thread connection for reliable attachment in pneumatic systems
Compatible with 12mm tube size for smooth fluid flow and leak-free performance
Durable construction for long-lasting use in various pneumatic applications
Compact and lightweight, providing space-saving solutions in tight installations

DOWNLOAD CATALOG
