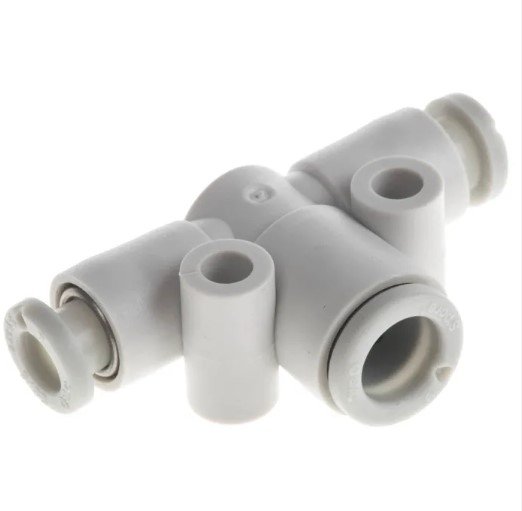

Part Number : KQ2T04-06A

Installing SMC's KQ2T different diameter tee fittings into your fittings is quick and simple. Because of their more compact shape, these KQ2T tees with varying diameters can be utilized in tight spaces. To join tubing for branching at both 90° angles, tees of varying diameter are used. In addition to being lighter than earlier models, the new KQ2 line of goods offers better insertion and removal forces.

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Body Material	Polypropylene
Connection	A Tube: Push In
Connection	B Tube: Push In
Connection	Branch Tube: Push In
Functions	Tube-to-Tube
Input	Size: 4mm
Operating pressure	-1 to 10 bar
Operating Temperature	-5°C to 60°C
Output	Size: 6mm
Series	KQ2
Type	TEE Fitting
Weight	2.96 g

Tube Compatibility: Accepts nylon and urethane tubes.
Versatile Use: Suitable for both vacuum and positive pressure applications.
Easy Tube Removal: Release collar allows easy removal without damaging the tube.
Vacuum Pressure: Maximum vacuum pressure of 1.0MPa.
