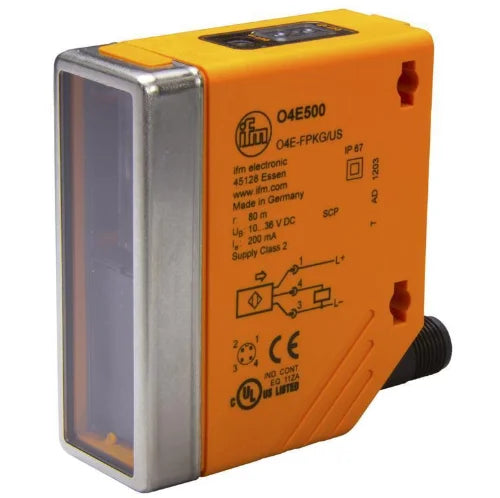

Through-beam sensor – receiver ifm electronic O4E500 - O4E-FPKG/US
The receiver of the rectangular through-beam sensor O4E500 - O4E-FPKG/US from ifm is characterised by a large range of 0-80 m and the high protection rating IP67. The sensitivity is set easily via pushbuttons. Comprehensive mounting accessories are available for the receiver of the through-beam sensor O4E500 - O4E-FPKG/US to ensure easy, flexible and time-saving adaptation. The receiver of the through-beam sensor O4E500 - O4E-FPKG/US with M12 connection in conjunction with the matching transmitter is the optimum solution for the timber, paper and automotive industry as well as for transport and conveying technology and steel processing.
- Specifications
- Features
- Downloads
| Current consumption [mA] | 12 |
| Electrical design | PNP |
| Housing | rectangular |
| Operating voltage [V] | 10-36 DC V |
| Output function | light-on/dark-on mode; (programmable) |
| Overload protection | yes |
| Protection class | II |
| Reverse polarity protection | yes |
| Short-circuit protection | yes |
| Switching frequency DC [Hz] | 1000 Hz |
- Very long range
- Sensitivity adjustable via teach buttons
- Programmable light-on/dark-on mode
- Robust housing for use in harsh industrial environments
- With connector that can be rotated by 270°
