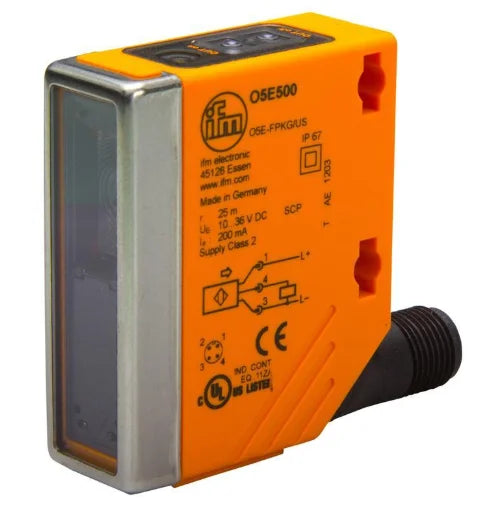

Through-beam sensor – receiver ifm electronic O5E500 - O5E-FPKG/US
The receiver of the through-beam sensor O5E500 - O5E-FPKG/US from ifm is very robust due to the high protection rating IP67 and can be easily set thanks to the innovative teach method. The unit features one button each for setting a precise on and off state. The receiver of the through-beam sensor has a long range of 0-25 m and a selectable light-on/dark-on mode. The sophisticated mounting accessories and the M12 connector which is rotatable by 270° enable easy adaptation in your application. The receiver of the through-beam sensor O5E500 - O5E-FPKG/US with matching transmitter is the perfect solution for position detection in packaging and conveying.
- Specifications
- Features
- Downloads
| Current consumption [mA] | 11 |
| Electrical design | PNP |
| Housing | rectangular |
| Operating voltage [V] | 10-36 DC V |
| Output function | light-on/dark-on mode; (programmable) |
| Overload protection | yes |
| Protection class | II |
| Reverse polarity protection | yes |
| Short-circuit protection | yes |
| Switching frequency DC [Hz] | 1000 Hz |
- Very long range
- Sensitivity adjustable via teach buttons
- Programmable light-on/dark-on mode
- Robust housing for use in harsh industrial environments
- With connector that can be rotated by 270°
