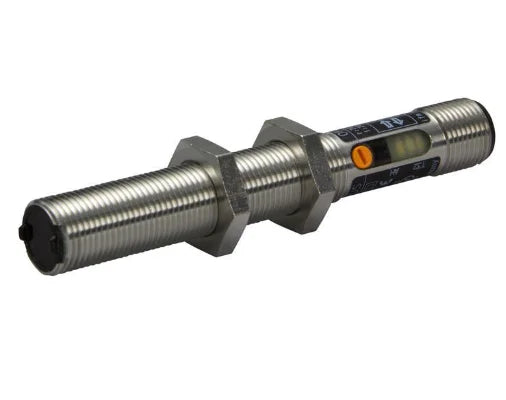

Through-beam sensor – receiver ifm electronic OF5022 - OFE-FPKG/US
The receiver of the M12 through-beam sensor OF5022 - OFE-FPKG/US from ifm with the protection rating IP65 has a range of 0-4 m and programmable light-on/dark-on mode. Thanks to the function check output the through-beam sensor is reliable in the application. The sensitivity can be easily set via a potentiometer. The receiver of the through-beam sensor OF5022 - OFE-FPKG/US with matching transmitter is the optimum solution for position detection in factory automation, packaging and conveying.
- Specifications
- Features
- Downloads
| Current consumption [mA] | <30 |
| Electrical design | PNP |
| Housing | threaded type |
| Operating voltage [V] | 10-36 DC V |
| Output function | light-on/dark-on mode; (programmable) |
| Overload protection | yes |
| Reverse polarity protection | yes |
| Short-circuit protection | yes |
| Switching frequency DC [Hz] | 320 Hz |
| System | Function check output |
- Intuitive setting of the sensitivity via potentiometer
- With function check output to signal soiling or maladjustment
- Robust metal housing for use in harsh industrial environments
- Programmable light-on/dark-on mode
- LED display to check operation, switching status and function
