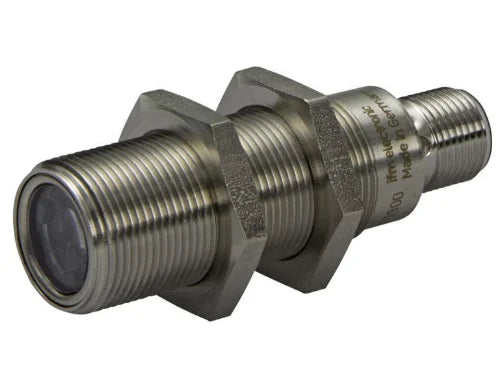

Through-beam sensor – receiver ifm electronic OGE300 - OGE-DPKG/US
The receiver of the M18 through-beam sensor OGE300 - OGE-DPKG/US100 features a range of 0-20 m and dark-on mode. Thanks to the fixed setting, easy set-up is ensured. The M12 through-beam sensor with M12 connector is of tested quality, confirmed by the ECOLAB certificate. Thanks to the robust stainless steel housing with the optimum sealing concept IP67/IP68/IP69K and a PMMA plastic lens the receiver of the through-beam sensor OGE300 - OGE-DPKG/US100 in conjunction with the matching transmitter is suitable for applications in hygienic and wet areas in the food industry.
- Specifications
- Features
- Downloads
| Ambient temperature | -25 °C to 80 °C |
| Current consumption [mA] | 10 |
| Electrical design | PNP |
| Housing | threaded type |
| Operating voltage [V] | 10-36 DC V |
| Output function | dark-on mode |
| Protection class | II |
| Reverse polarity protection | yes |
| Short-circuit protection | yes |
| Switching frequency DC [Hz] | 1000 Hz |
- Robust stainless steel housing for use in the food and beverage industry
- Resistant to high-pressure cleaning with aggressive cleaning agents
- High protection rating for the requirements of harsh industrial environments
- Ready for operation immediately thanks to fixed setting
- Very long range
