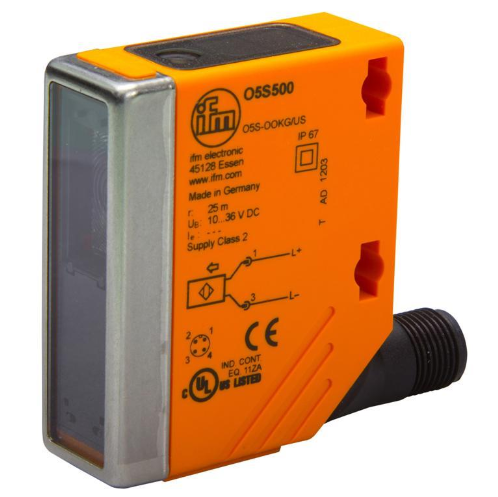

Through-beam sensor - transmitter ifm electronic O5S500 - O5S-00KG/US
The transmitter of the through-beam sensor O5S500 - O5S-00KG/US from ifm is very robust thanks to the high protection rating IP67. The transmitter has a long range of 0-25 m. The sophisticated mounting accessories of the through-beam sensor and the M12 connector which is rotatable by 270° enable easy adaptation in your application. The transmitter of the through-beam sensor O5S500 - O5S-00KG/US in conjunction with the matching receiver is the perfect solution for position detection in packaging and conveying technology.
- Specifications
- Features
- Downloads
Ambient temperature | -25 °C to 60 °C |
Current consumption [mA] | 20 |
Dimensions | 56 x 18.2 x 46.8mm |
Housing | rectangular |
Light Source | red light |
Operating voltage [V] | 10-36 DC V |
Protection class | II |
Reverse polarity protection | yes |
Weight | 65.5g |
- Very long range
- Robust housing for use in harsh industrial environments
- Clearly visible indication of the readiness for operation
- Excellent price/performance ratio
- With connector that can be rotated by 270°
