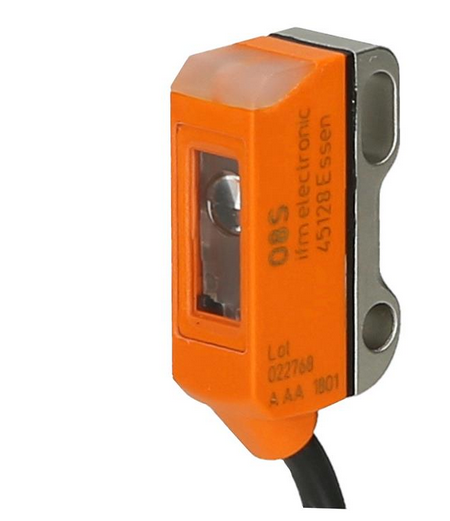

Through-beam sensor-transmitter ifm electronic O8S202 - O8S-OOKG/0,30M/AS/4P
The transmitter of the compact through-beam sensor O8S202 - O8S-OOKG/0,30M/AS/4P from ifm electronic is characterised by its robust housing with stainless steel mounting bracket, IP65/IP67 protection rating and a range of < 3 m. The O8 transmitter is set via IO-Link on the receiver. The O8S202 through-beam sensor, in combination with the matching receiver is the perfect solution for use in confined spaces in supply and handling technology applications.
- Specifications
- Features
- Downloads
| Ambiant temperature | -25 °C to 60 °C |
| Current consumption [mA] | 12; ((24 V)) |
| Electrical design | Rectangular |
| Housing | rectangular |
| Operating voltage [V] | 10-30 DC V |
| Output function | dark-on mode |
| Protection class | III |
| Reverse polarity protection | yes |
| Short-circuit protection | yes |
| Switching frequency DC [Hz] | 1000 Hz |
- Particularly small housing for use where space is restricted
- For the reliable position detection in feeding and handling technology
- Small light spot and narrow light cone for detecting of small objects
- Ready for operation immediately thanks to fixed setting
- Visible red light for simple alignment
