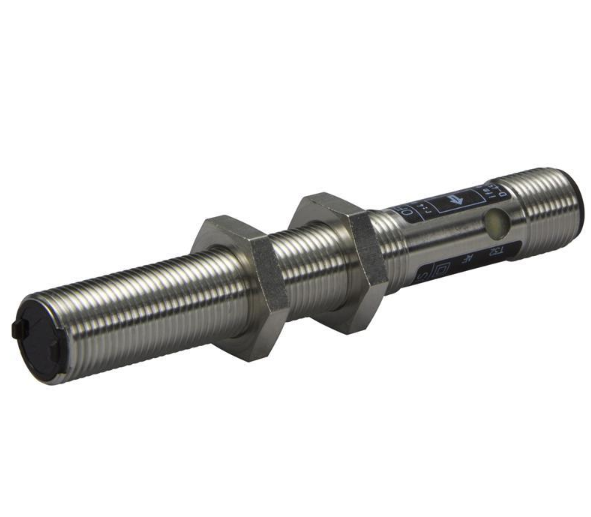

Through-beam sensor - transmitter ifm electronic OF5021 - OFS-OOKG/US
The transmitter of the M12 through-beam sensor OF5021 - OFS-OOKG/US from ifm electronic with protection rating IP65 has a range of 0-4 m. In conjunction with the matching receiver, the sensor features programmable light-on/dark-on mode and a sensitivity that can be set via a potentiometer. The transmitter of the M12 through-beam sensor OF5021 - OFS-OOKG/US with M12 connector in conjunction with the matching receiver is the optimum solution for position detection in factory automation, packaging and conveying.
- Specifications
- Features
- Downloads
Ambient temperature | -25 °C to 60 °C |
Current consumption [mA] | <25 |
Housing | threaded type |
Light Source | infrared light |
Operating voltage [V] | 10-36 DC V |
Protection class | II |
Reverse polarity protection | yes |
Short-circuit protection | yes |
Weight | 35.5g |
- Robust metal housing for use in harsh industrial environments
- Long range
- LED display to check the operating status
