Tramex CMEX5 - CONCRETE MOISTURE ENCOUNTER X5 FOR MEASURING MOISTURE CONTENT AND HUMIDITY IN CONCRETE FLOORS AND SLABS, WOOD AND BUILDING MATERIALS
CONCRETE MOISTURE METER FOR MEASURING MOISTURE CONTENT AND HUMIDITY IN CONCRETE FLOORS AND SLABS, WOOD AND BUILDING MATERIALS

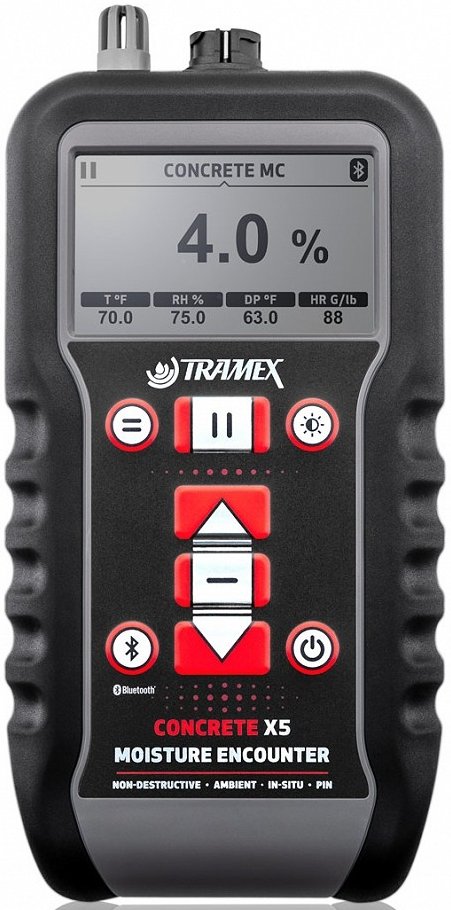

The Tramex Concrete Moisture Encounter X5 - CMEX5 is an instant, precise, digital, non-destructive moisture meter for measuring quantitative moisture content % in concrete floors and slabs using Gravimetric testing as a baseline. The CMEX5 also provides Carbide Method equivalent readings for concrete and other cementitious substrates as well as comparative readings for Gypsum and as per ASTM F2659. The CMEX5 features a built-in ambient RH sensor that measures Ambient Relative Humidity, Temperature, Dew Point, and Humidity Ratio (or Mixing Ratio) of the environment. A bayonet plug-in port allows for optional wood pin probes or Tramex Hygro-i2 Relative Humidity Probes. Bluetooth connectivity to the Tramex Meters App allows for visualization of readings and data reporting to mobile devices, to GeoTag test results, create, save and share photos, reports and charts.
- Specifications
- Features
- Downloads
Body | ABS body |
Display | Digital |
Measuring range | Moisture content for Concrete: 0 ¢ ' 6.9 % Comparative for Gypsum floor screed: 0 ¢ ' 12 CM Equiv Anhydrite/Concrete: 0¢ '2.7 / 0¢ '4.3 Reference scale: 0 ¢ ' 100 Relative Humidity 0 ¢ ' 99% (with optional Hygro-i2 ® probe): Humidity accuracy: 0% ¢ ' 99%RH +/- 2% @ 25°C / 77°F Moisture content for wood (with optional wood pin probes): 5 ¢ ' 30 % |
Power Supply | 2 x AALR6 ALKALINE (included) |
Size | 180mm x 85mm x 40mm (7.1 |
Weight | 357g (12.59oz) |
- 4 modes of measurement: Non-destructive moisture measurement, ambient hygrometer, and optional external in-situ hygrometer and wood pin probe.
- 5 Non-Destructive test (NDT) Scales: Concrete %MC, CM Concrete (Carbide Method equivalent for concrete), CM Anhydrite, Gypsum Ref 0-12 and a Reference scale.
- Instant and precise readings to a depth of approximately 20mm (3⁄4") into the concrete slab, for reproducible and reliable results.
- The built-in Hygrometer probe provides Ambient Relative Humidity (%RH) readings, temperature, dew-point temperature and Humidity Ratio.
- Pin-probe mode for 5% to 30% Moisture Content measurement in Wood; 7 -100 comparative (WME), using Pin-type probe attachments. (optional)
- Attaches to a reusable relative humidity Hygro-i2 ® probe for in situ and hood testing of concrete per BS 8201, 8203, 5325 and ASTM F2170. (optional)
- Airspace conditions of Relative Humidity, Temperature, Dew-point and Humidity Ratio (using optional RH probes)
- Moisture readings and scale are displayed on a large, clear easy-to-read clear digital display: 2.3" x 1.4" (58mm x 35mm).
- Front lit display allows the display to be easily read in poor light conditions.
- Bluetooth connection to accompanying IOS & Android App allowing for continual development and integration of apps and reporting.
- Hold Function which enables the user to “freeze” the reading, useful when taking readings where the meter face may not be visible.
- Spring-loaded contact pins compensate for uneven concrete and boost signal penetration.
- Rugged ergonomically designed enclosure.
