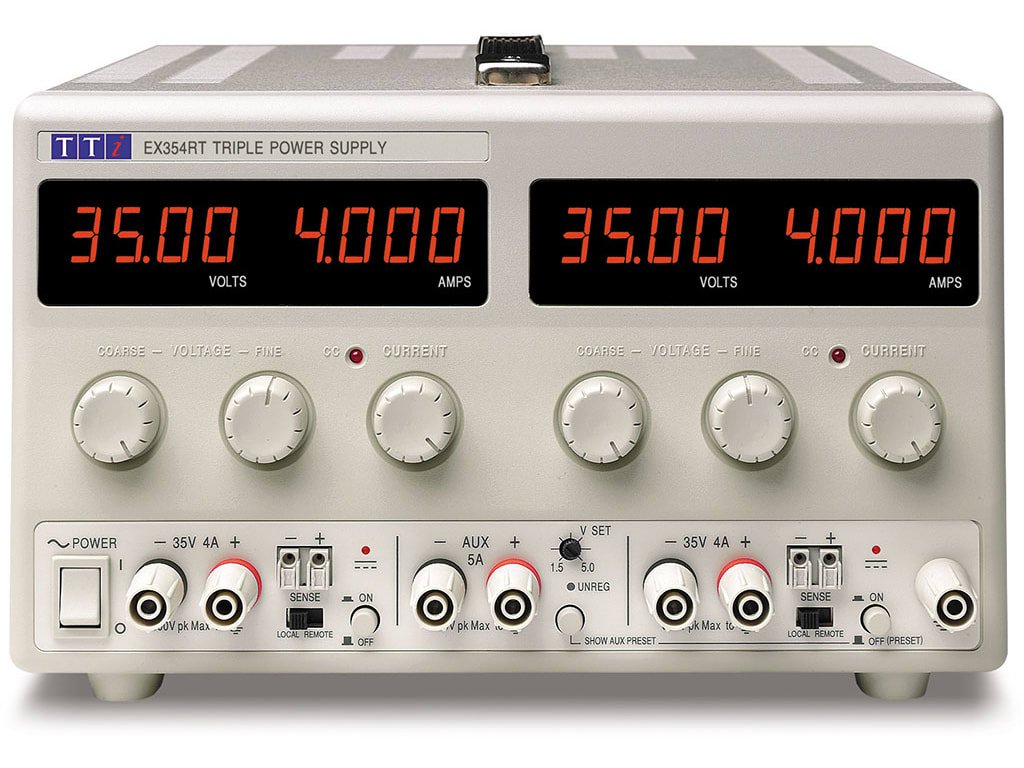

TTi EX354RT | Digital voltage and current meters | Triple 0-35V/0-4A Dual plus 1.5-5V/5A
Models from the most popular EX series have been added to the new EX-R line. The EX-R series offers significantly higher precision while maintaining the ease of use that many users of bench-top power supplies want. This is accomplished by using four digit metres and switchable remote sensing. Six variants are available, ranging in power from 175 watts to 420 watts and featuring single, dual, and triple outputs.
- Specifications
- Features
- Downloads
| Dimensions | Single output models - 140x160x320 mm (WxHxD). Dual and triple output models - 260x160x320 mm (WxHxD) |
| Display | Dual 4-digit meters, 14mm (0·56�) LED |
| Operating Temperature | +5°C to +40°C, 20% to 80% RH |
| Storage Temperature | -40°C to + 70°C |
| Weight | 4.3kg. |
Compact design uses less bench space
Silent fan-free cooling (not EX202R/EX4210R)
DC output switches, automatic mode indication
RS232 or USB controlled models available (35V/5A single)
Multi-mode dual model 2x(75V/2A) or 75V/4A or 150V/2A
Independent digital voltage and current meters for each output with 4 digit resolution
Switchable local or remote sensing
Constant voltage or constant current operation
Variable 1.5 - 5.0V auxiliary output at 5A (EX354RT)
