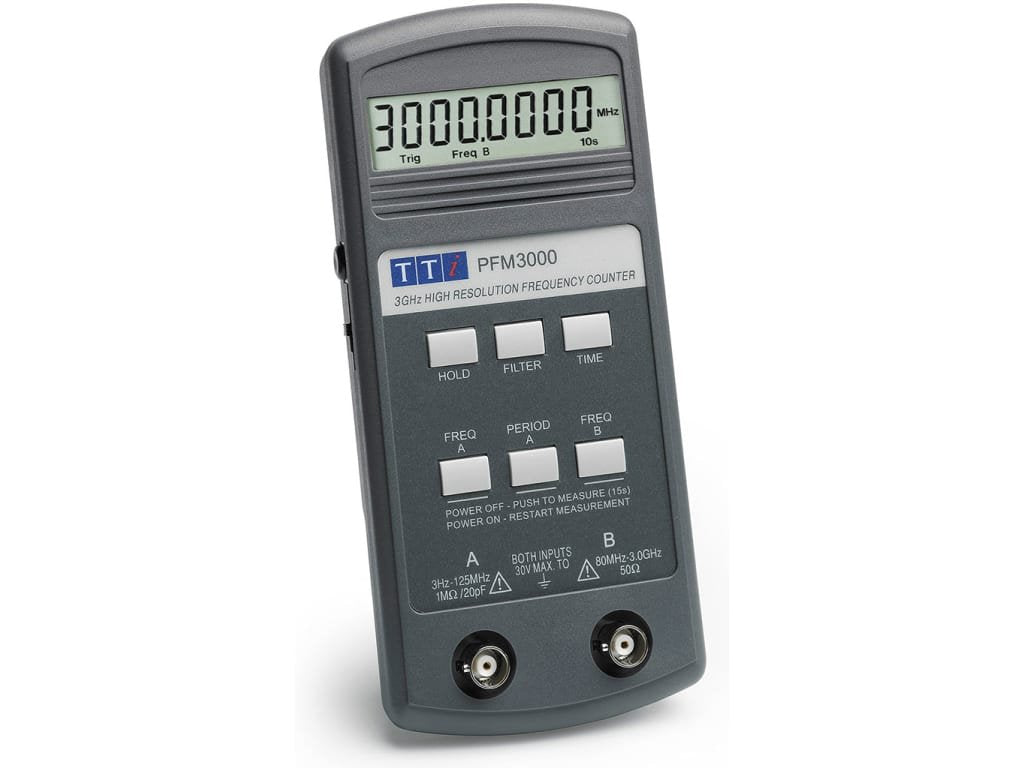

Aim-TTi PFM3000 | Handheld Frequency Counter | 3Hz to 3GHz

Name: Aim-TTi PFM3000 | Handheld Frequency Counter | 3Hz to 3GHz
Brand: Aim Tti
SKU: PFM3000
Availability: InStock

Part Number : PFM3000

The Aim-TTi PFM3000 is a battery powered handheld frequency counter measuring from 3Hz to 3000MHz across two overlapping ranges. Reciprocal counting and an 8+ digit display make it practical for radio servicing, field checks and bench work where a portable counter is preferred. A noise filter helps with low frequency measurements.

Key features

3Hz to 3000MHz in two overlapping ranges
High impedance measurement up to 125MHz
Period measurement from 3Hz to 125MHz
Reciprocal counting technique
Push-to-measure with auto power-down
8+ digit display; selectable measurement time and hold

Availability: low stock

Free UAE shipping available

Detailed Description
Specifications
Features
Downloads

Aim-TTi Frequency Counter PFM3000 3.0GHz Handheld Reciprocal Counting

A sophisticated counter with a large LCD display that uses a reciprocal counting measurement technique to achieve fast response and high resolution at all frequencies.

Wide frequency range of <3Hz to >3000MHz
High sensitivity across the frequency band
High impedance measurement up to 125MHz
Period measurement from 8ns to 330ms
8 digits of resolution at 1 sec. measurement
Low pass filter for noise suppression
Data hold function to freeze display reading
Long battery life and push-to-measure function
Powered by PP3 Alkaline battery; Stock no. 394-9059 (not supplied)

Supplied with

user manual

Part Number	PFM3000
Brand	Aim-TTi
Frequency Range	3Hz to 3000MHz
High Impedance Input	Up to 125MHz
Period Measurement	3Hz to 125MHz
Counting Method	Reciprocal
Display	8+ digit
Power	Battery
Format	Handheld
