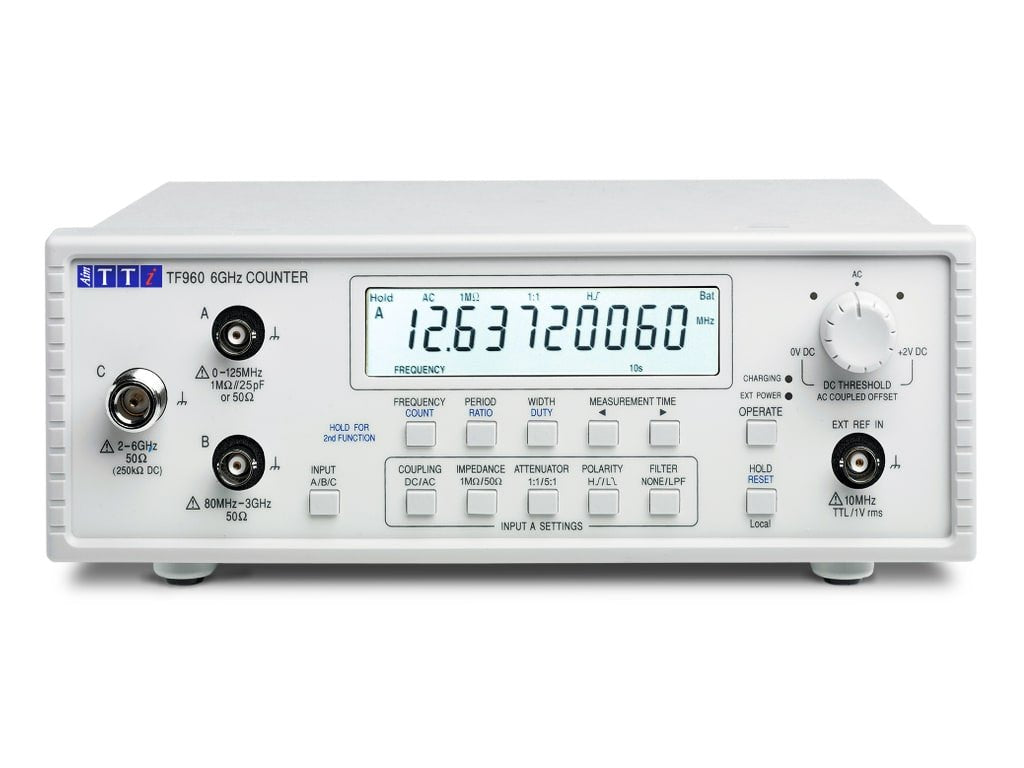

TTi TF960 Frequency 6GHz | Universal Counter USB

Name: TTi TF960 Frequency 6GHz | Universal Counter USB
Brand: AIM TTi
SKU: TF960
Availability: OutOfStock

Part Number : TF960

A high-quality temperature compensated internal frequency reference (TCXO) that is used in the TF930 and TF960 has a low rate of ageing and is stable to within 1ppm over the whole temperature range. Its quick warm-up time makes it possible to take precise measurements even while using a battery-powered portable device. When an external reference standard is attached, the External Reference input automatically switches from the internal time basis.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Battery	Three 2500mAh NiMH cells
Frequency (Hz)	0.001Hz to > 125MHz (1M, DC coupled) < 30Hz to > 125MHz (1M, AC coupled) < 500kHz to > 125MHz (50R, AC coupled)
Operating Temperature	+5°C to +40°C, 20% to 80% RH
Storage Temperature	-20°C to +60°C
Weight	950 gms (plus 170 gms AC adaptor)

TF960 6GHz Universal Counter USB
Frequency, period, pulse width, frequency ratio, duty cycle, and event counter modes
DC to 6000MHz range, 0.001mHz resolution, TCXO Timebase
High impedance measurement up to 125 MHz
AC or DC coupling, 1M/50Ohm selection, polarity invert
Switchable attenuator, threshold control
Noise filter for low frequency measurements
Selectable measurement time; display hold function
Large 10 digit display with full range of annunciators
Internal rechargeable batteries for portable use
