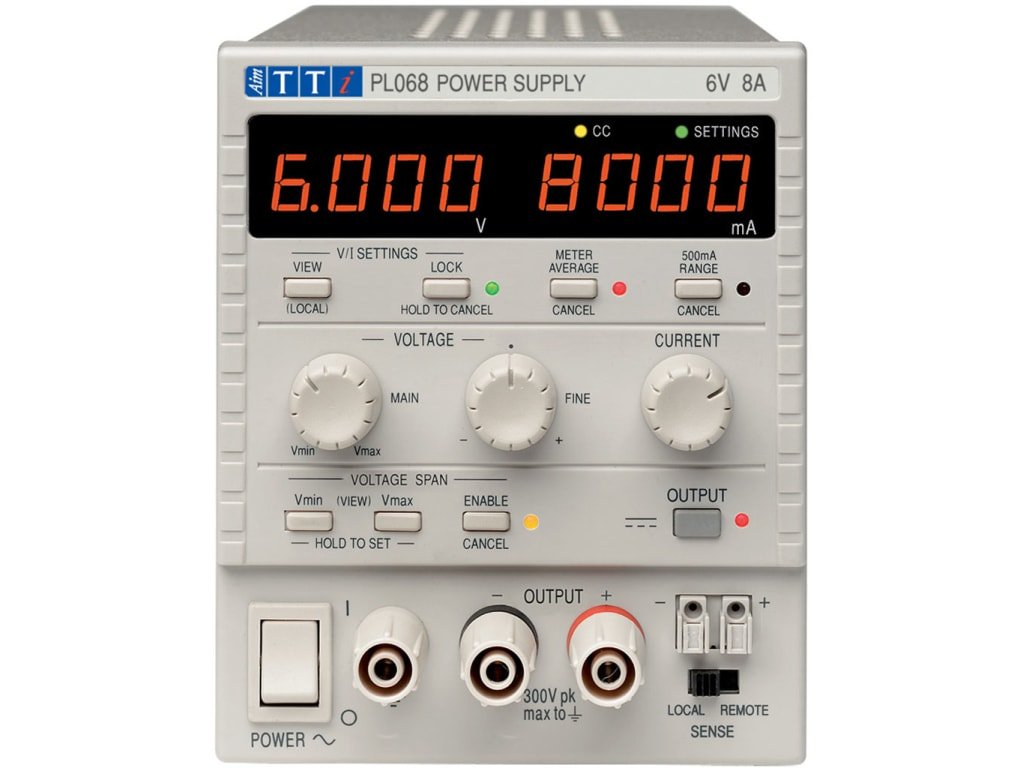

TTi PL068 | Single Precision Bench System DC Power Supply | 6V/8A
The New PL Series is TTi's most recent line of high-performance linear regulated dc power supplies. It takes the place of the original PL series, which was widely regarded as the best laboratory power supply available. The Additional PL Series incorporates new digitally based convenience features, greater power density, and better performance while maintaining the authentic analogue control of the original PL series.

Free UAE shipping available
- Specifications
- Features
- Downloads
Dimensions | 107mm x 131mm (1/4 rack 3U) x 288mm |
Display | Dual 4-digit meters, 10mm (0·39�) LED |
Operating Temperature | +5oC to +40oC, 20% to 80% RH |
Storage Temperature | -40oC to + 70oC |
Voltage | 230V AC or 115V AC +/- 10%, 50/60Hz. Installation Category II |
Weight | 4·5kg |
True Analog controls - for ease of use
S-Lock function - instantly lock settings
V-Span function - customise the voltage range
Low current range and current meter averaging
DC output switches and "view limits" button
Bench System DC Power Supply, Linear Regulation,
Smart Analog Controls Single Output, 6V/8A, No Interfaces
Single output
0 to 6V at 0 to 8A
Linear regulation - for the best performance
Ultra-compact design - uses up less space
