Aim-TTi PLH250 | Higher Voltage Linear DC Power Supply | 250V/0.375A, 94W

Name: Aim-TTi PLH250 | Higher Voltage Linear DC Power Supply | 250V/0.375A, 94W
Brand: Aim Tti
SKU: PLH250
Availability: InStock

Part Number : PLH250

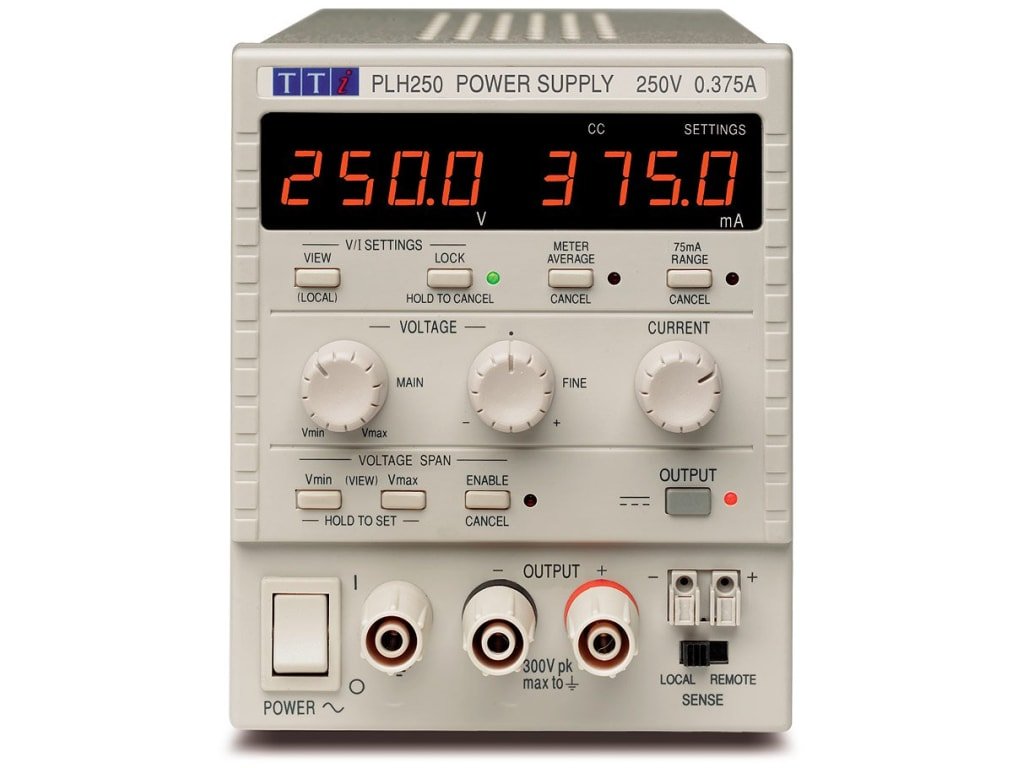

The Aim-TTi PLH250 is a linear regulated supply with a single 250V/0.375A output of 94W, the highest voltage model in the PLH range. It suits bench work on circuits that need up to 250V, with simple analogue setting and S-Lock to hold values.

Key features

Single 250V/0.375A output, 94W
No remote interfaces
Linear regulation with true analogue controls
S-Lock setting lock and V-Span voltage range customisation
Low current range and current meter averaging
DC output switch and 'view limits' button
Selectable remote sense terminals

Availability: low stock

Free UAE shipping available

Detailed Description
Specifications
Features
Downloads

PLH & PLH-P Series

PLH is a development of the Aim-TTi PL series. The ultra compact form, high power density and smart analog controls of PL are incorporated in PLH, which also offers voltages up to 250V to cover applications beyond the capabilities of standard bench PSUs and into areas such as magnetics. PLH-P includes all the manual control features of PLH but offers also full remote control and read-back for bench and system applications using RS-232, USB and Ethernet (LAN/LXI).

Input power 280VA maximum
Low output noise and fast transient recovery
High power density - up to 94W from a quarter-rack, 3U sized casing
Unusually small bench footprint and, for rack-mount applications, up to 4 units can be mounted into a single slot
Exceptional line and load regulation, easy-switch remote sense
High accuracy 4-digit fixed-resolution meters, low current range, current meter averaging
Quick and intuitive adjustment of voltage and current
Unique S-Lock function digitally locks voltage and current settings at the touch of a button
Unique V-Span function enables the full 300Â° rotation of the voltage control to cover any voltage range
DC output switch enables voltage and current to be set up before connecting the load
Operating temperature range +5ÂºC â†’ +40ÂºC, 20% â†’ 80% RH
Storage temperature range -40ÂºC â†’ +70ÂºC
Suitable for indoor use at altitudes up to 2000m, Pollution Degree 2
Intelligent variable-speed low-noise fan assists convection cooling

Standards

EN 61010-1, EN61326

Supplied with

User manual, mains lead and (PLH-P only) CD containing driver software

Part Number	PLH250
Brand	Aim-TTi
Outputs	1
Output Rating	250V/0.375A
Output Power	94W
Regulation	Linear
Controls	Analogue, S-Lock, V-Span
Interfaces	None

High accuracy four digit fixed-resolution meters
Low current range; current meter averaging
Dc output switch - check your settings before applying them
View settings button - check and adjust limits at any time
Lockable voltage and current settings (using S-Lock)
PLH250 Single 0-250V/0-0.375A Higher Voltage Linear Regulated DC Bench Power Supply
Low output noise and fast transient recovery
Up to 94 watts from an ultra-compact case size
Exceptional line and load regulation
Easy-switch remote sense
