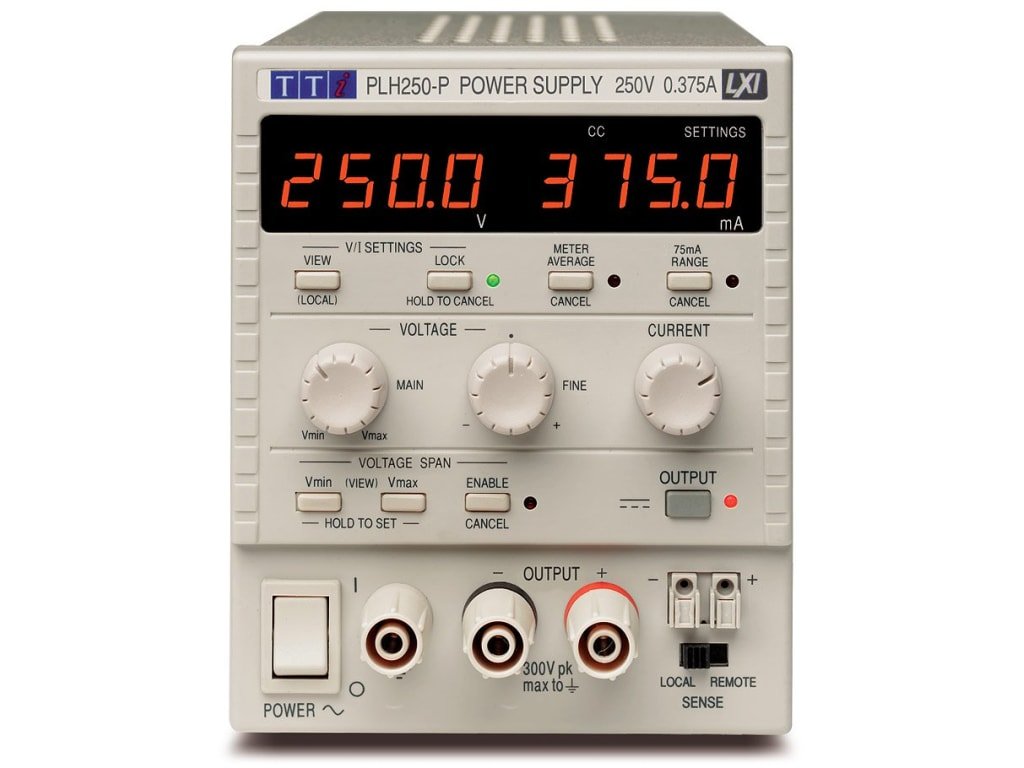

TTi PLH250-P | DC Power Supply | Single Higher Voltage | 0-250V/0-0.375A, Analog
The PLH-P Series is the bus-programmable version of TTi's most recent linear regulated power supply series. The PLH-P series has all of the manual control features of the PLH series, but it also has extensive remote control capabilities. Because of its ultra-compact rack-modular design, it is perfect for rack-mounted system applications, while its user-friendly manual controls are retained for bench top applications.
- Specifications
- Features
- Downloads
| Dimensions | 107mm x 131mm (1/4 rack 3U) x 315mm |
| Display | Dual 4-digit meters, 10mm (0·39�) LED |
| Operating Temperature | +5oC to +40oC, 20% to 80% RH |
| Storage Temperature | -40oC to + 70oC |
| Voltage | 230V AC or 115V AC +/- 10%, 50/60Hz. Installation Category II |
| Weight | 5.0kg |
LAN Interface conforms with LXI standard
Interfaces are opto-isolated from outputs
IVI Driver supplied
Isolated Analog remote control of V and I
Front and rear terminals
Selectable remote sense terminals
PLH250-P Single Higher Voltage DC Power Supply, 0-250V/0-0.375A, Analog
High performance linear regulated power supplies
Full digital remote control and readback
RS-232, USB and LAN (Ethernet), GPIB optional
