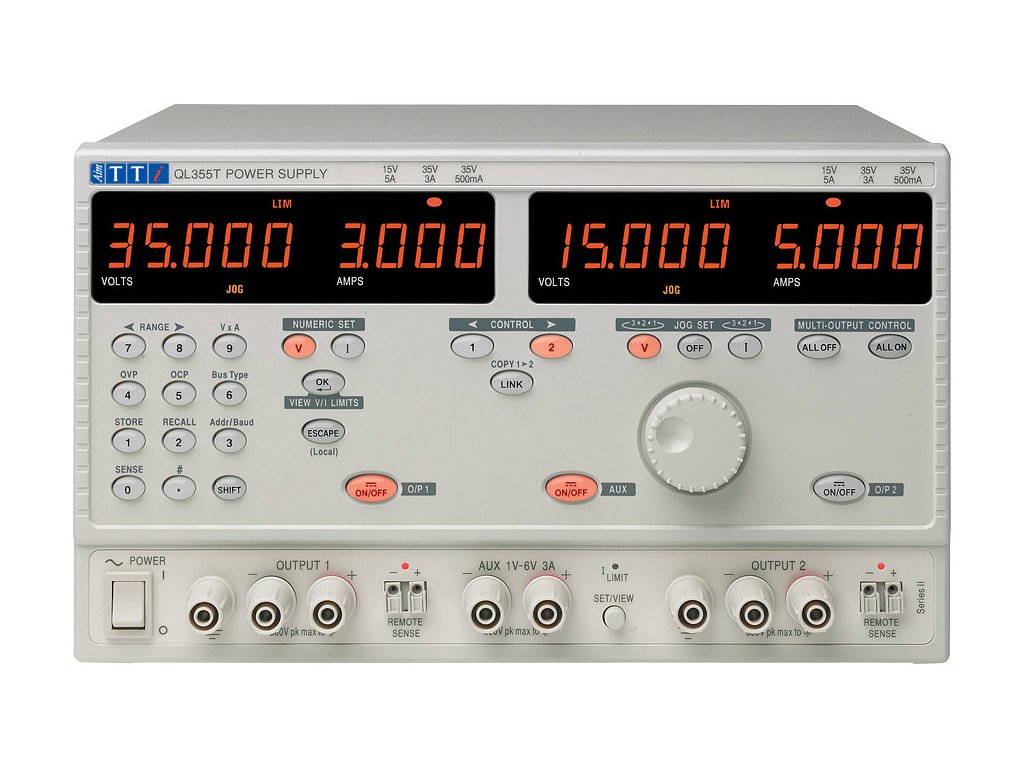

TTi QL355T SII | Linear Regulated Precision Power Supply | Dual QL355 plus 1-6V/3A
The QL Series II is TTi's most recent and high-performance linear regulated power supply series. There are single and triple output models available. Each model is available with or without a digital remote control interface. Each primary output delivers over 100 watts of power, while dual range capability allows for larger currents at lower voltages.
On T models, new features include an improved auxiliary output with completely changeable voltage and increased current capabilities, and on all P models, an LXI-compliant LAN interface.

Free UAE shipping available
- Specifications
- Features
- Downloads
Dimensions | Single - 140 x 160 (1/3 rack, 4U) x 290mm Triple - 280 x 160 (2/3 rack, 4U) x 290mm (size excludes feet, knobs and terminals). |
Display | Dual digital displays per output using 14mm (0.56�) high brightness LEDs. 5 digits for voltage, 4 digits for current. Update rate 4 per second. |
Operating Temperature | +5oC to +40oC, 20% to 80% RH |
Storage Temperature | -40oC to + 70oC |
Voltage | 230V AC or 115V AC +/- 10%, 50/60Hz Installation Category II. |
Weight | Single - 5.5kg (12lb), Triple - 10.5kg (23lb) |
Multiple voltage/current ranges for increased flexibility
Multiple non-volatile memories for power supply set-ups
Switchable remote sense provides perfect load regulation
Comprehensive protection including OVP and OCP trips
Compact bench footprint; modular width for rack mounting
2x(35V/3A) & 1x(6V/3A) or 1x(15V/5A) & 1x(6V/3A)
TTi QL355T SII Dual QL355 plus 1-6V/3A Linear Regulated Precision Power Supply
Advanced dc power supply range, single or triple output
Very high precision, very low noise, excellent dynamics
Advanced user interface with numeric and rotary control
