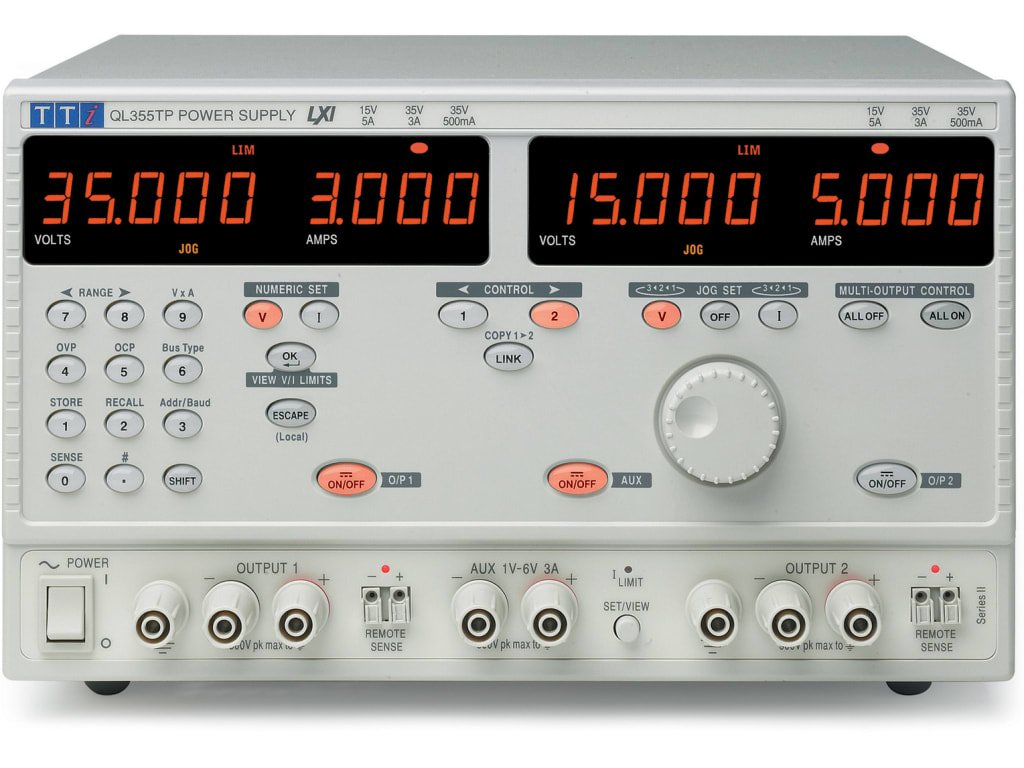

TTi QL355TP SII - Dual 0-35V/0-5A * plus 1-6V/3A LXI/USB/RS232/GPIB
The most recent and most effective series of linear regulated power supplies from TTi is called the QL Series II. There are models with a single output and three outputs. The inclusion or exclusion of digital remote control interfaces is an option for each model. More than 100 watts of power are available from each main output, and dual range capability allows for larger currents at lower voltages. On T models, new features include a better auxiliary output with completely changeable voltage and higher current capabilities, and on all P models, a LAN interface that complies with LXI.
- Detailed Description
- Features
- Downloads
The terminals are available at the front and rear
The input is 500 max
The size is 280 x 160 x 290 mm
The weight is 10.6 kg
Multiple non-volatile setting memories
OVP and OCP trips with alarm output
Selectable remote sense terminals
Linked-mode operation of main outputs (triple)
Auxiliary output fully variable 1.00V to 6.00V at 3A (triple)
Full control and read-back of all outputs via the bus
LAN interface conforms with LXI class C
Compact modular width for bench or rack, front and rear mounted terminals
1mV resolution at up to 56 volts
Multiple ranges for increased current flexibility
