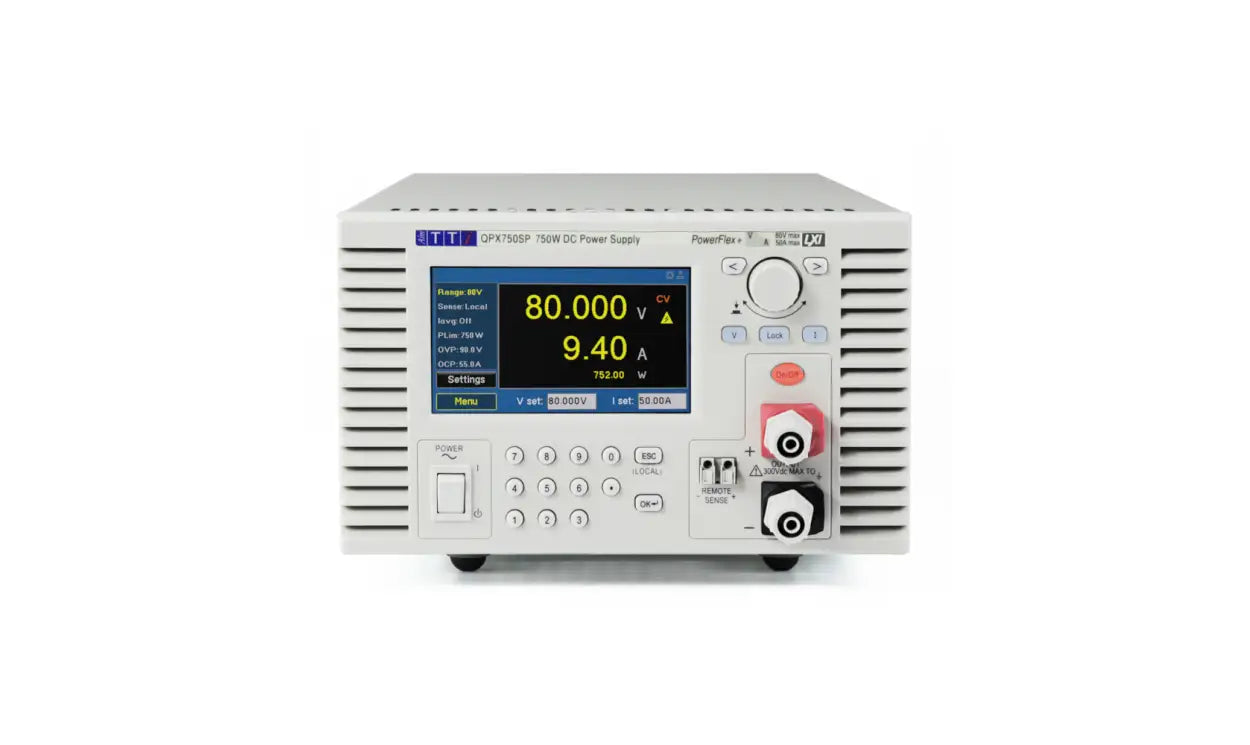

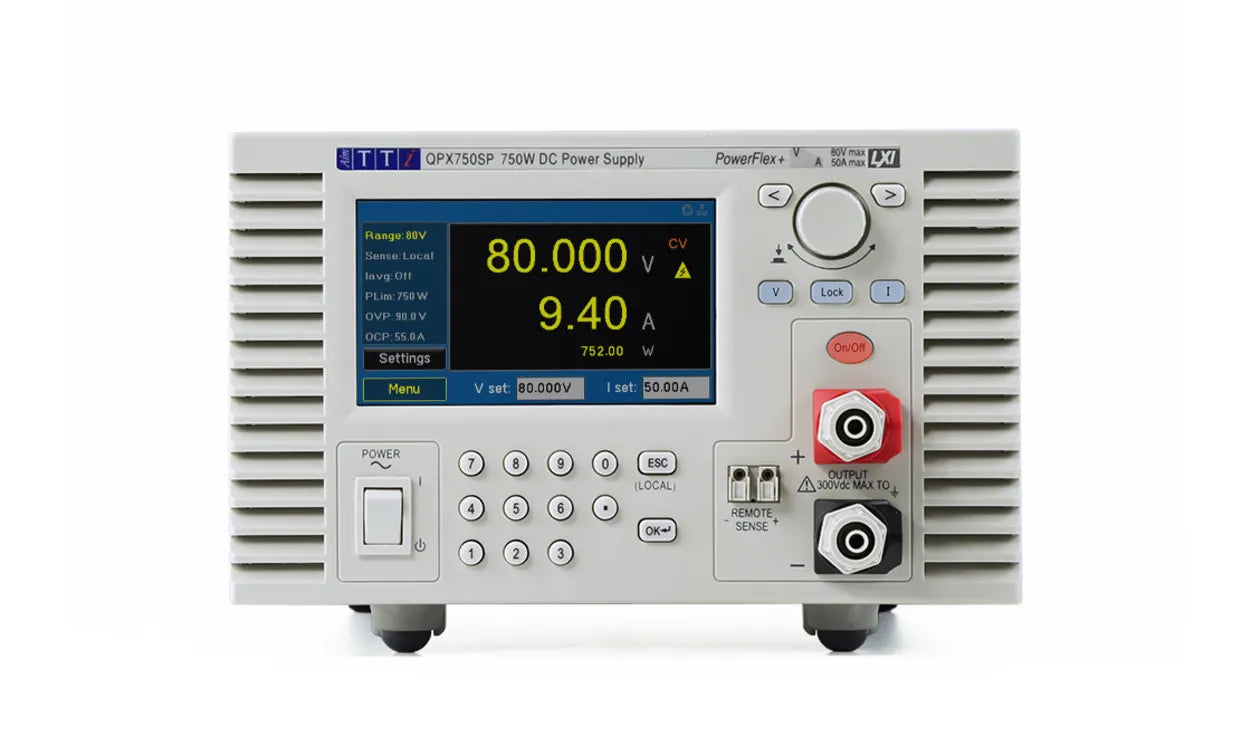

TTi QPX750SP | DC Power Supply | Bench/System | Single output, 80V/50A, 750W PowerFlex+, LAN & USB interfaces, GPIB Option

Name: TTi QPX750SP | DC Power Supply | Bench/System | Single output, 80V/50A, 750W PowerFlex+, LAN & USB interfaces, GPIB Option
Brand: Aim Tti
SKU: QPX750SP
Availability: OutOfStock

Part Number : QPX750SP

A 1.2kW single output dc power supply called the QPX1200S gives consumers a level of versatility that is not possible with customary laboratory power sources. It is equipped with front and rear terminals as well as an analogue remote control interface and is suitable for bench-top and system applications. Wide-ranging digital interfaces such as USB, RS232, GPIB, and LXI compatible LAN are added by the QPX1200SP (Ethernet). * Keep in mind that the now-discontinued QPX1200L is the same as the QPX1200SP except that it lacks the GPIB interface.

Availability: Sold out

Free UAE shipping available

Detailed Description
Features
Downloads

Product Details

QPX series laboratory power supplies are designed to provide flexibility in the choice of voltage and current so as to meet multiple diverse applications. Voltages up to 80V and currents up to 50A are available within a defined power envelope. Unlike most power supplies of this power level, the QPX series is well suited to bench top applications in addition to system use.

Features and benefits

A balanced multi-phase converter system minimises ripple and improves dynamic performance. This provides unusually low noise for the power level coupled with good transient response.
In addition to the 1mV 10mA resolution metering the display gives a reading for total power. Operation limits can be set as V, I or W.
Equivalent resistance measurement of the load enables low resistance measurements to be made at high currents, using the remote sense terminals to create a four terminal connection.

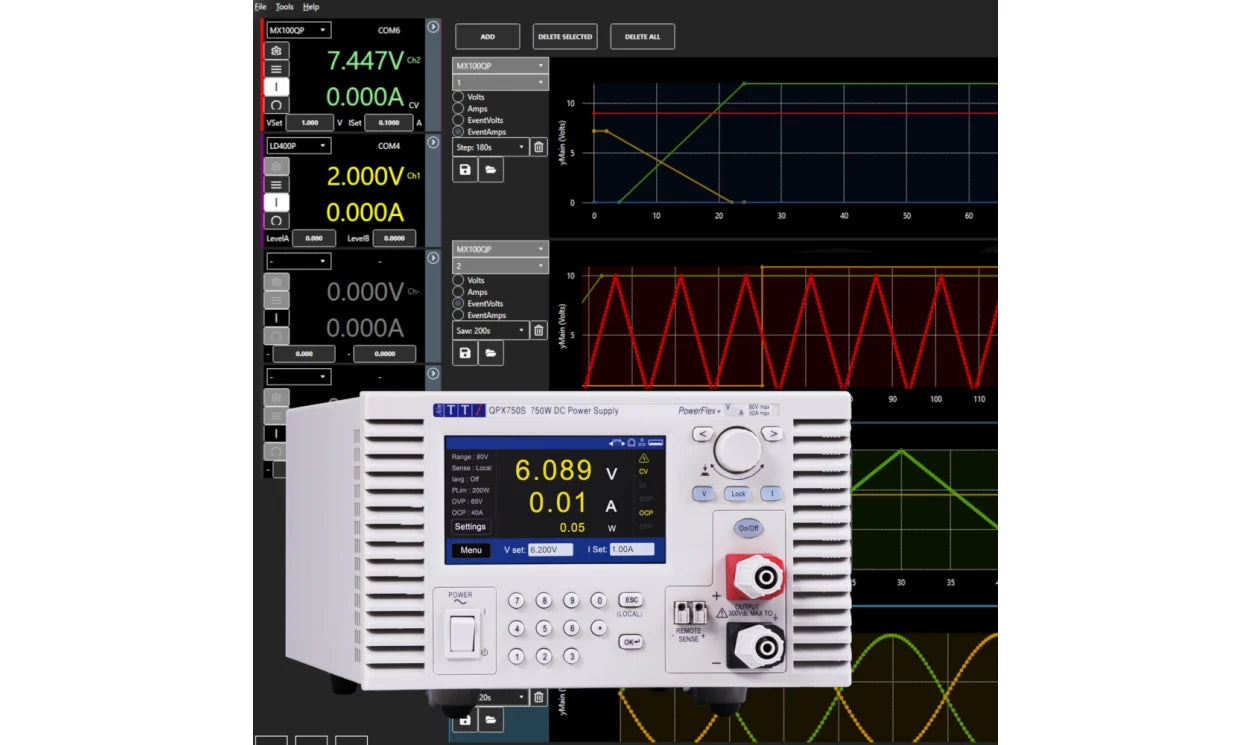

A comprehensive array of interfaces including USB, LAN /LXi and Quasi-analogue are standard. GPIB is available as a factory or customer fit option. QPX750SP is compatible with Aim-TTi Test Bridge software, providing graphical remote instrument control, logging and sequencing.

Voltages up to 80V and currents up to 50A are available within a defined power envelope. QPX750SP provides an added safety feature where voltages above 50V require authorisation from the user to comply with SELV.

Applications

Development Laboratories
Production and manufacturing
Service labs
Industrial applications
Educational institutions

Supplied with

TestBrideg Logging and sequencing software

What other Power Supplies are available in this Aim-TTi range?

RS SN 731-2858 (QPX1200S)
RS SN 731-2852 (QPX1200SP)
RS SN 731-2855 (QPX600D)
RS SN 707-2875 (QPX600DP)

Main Output(s): 80V or up to 50A
Digital Local Control
Graphic LCD

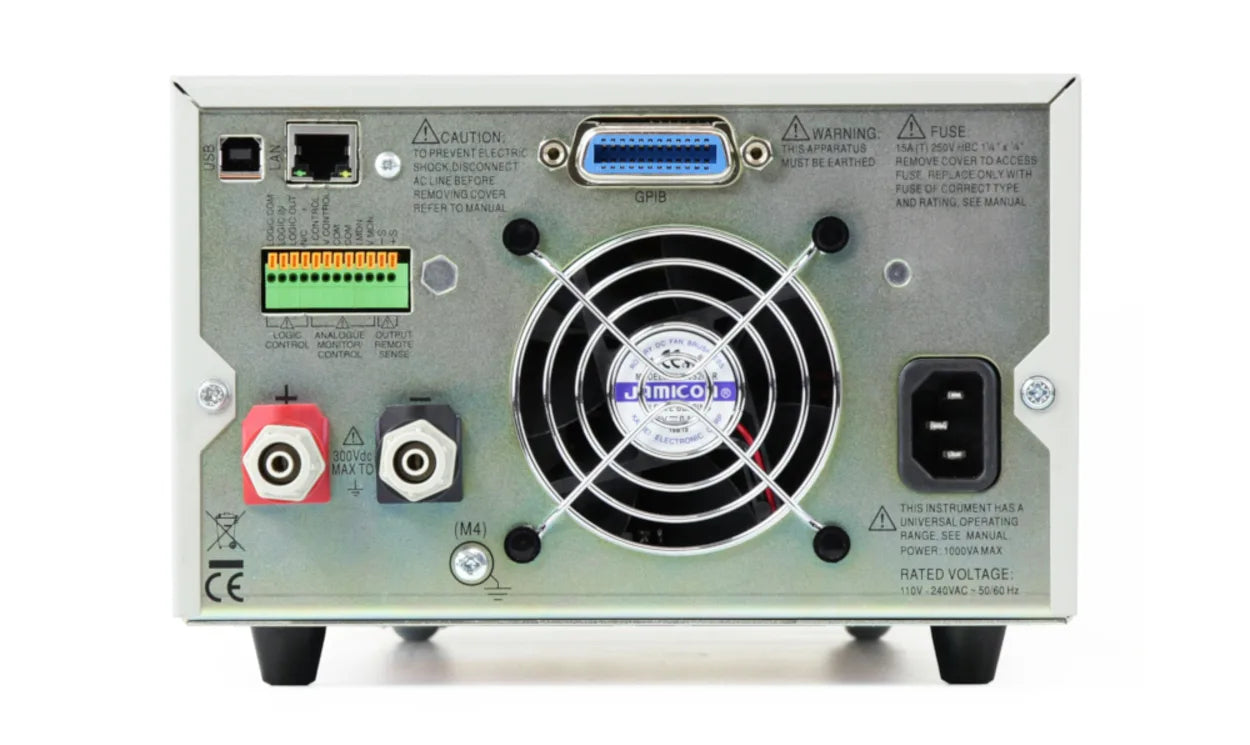

Numeric entry plus jog wheel, Front and rear terminals
Rack mount kit optional (2 units in 4U), USB and LAN/LXI as standard
GPIB Option
PowerFlex+ Regulation
Single output
750W Power
Interfaces: RS232/USB/LAN/GPIB
