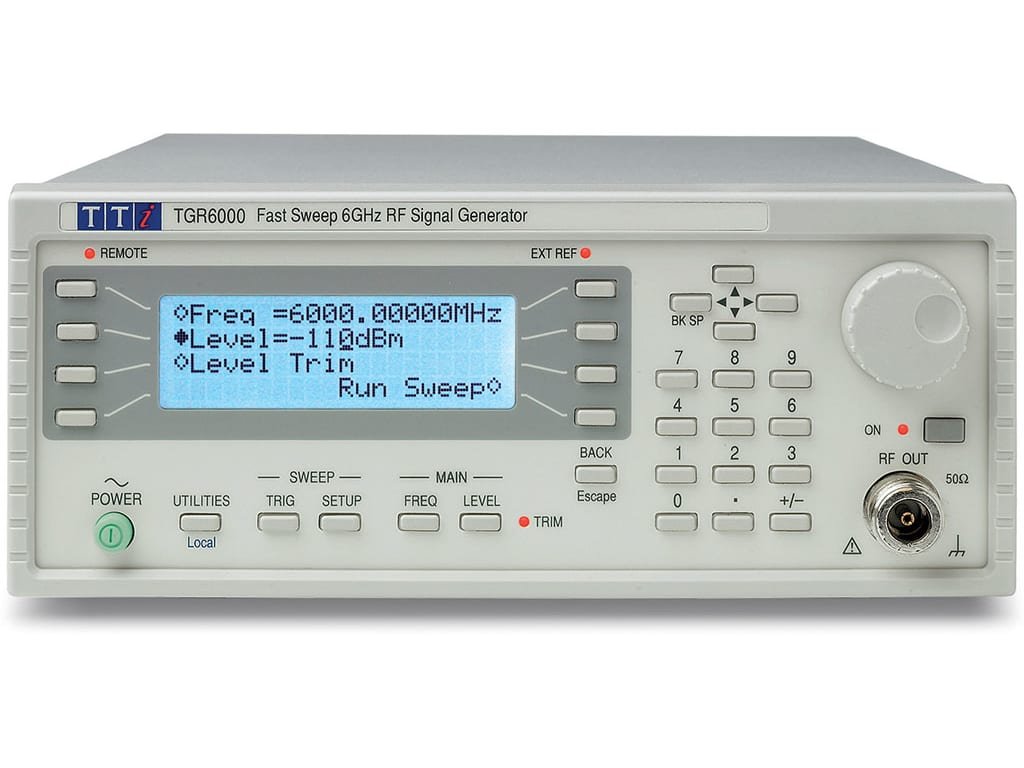

TTi TGR6000 Frequency 6GHz | Synthesised Signal Generator

Name: TTi TGR6000 Frequency 6GHz | Synthesised Signal Generator
Brand: AIM TTi
SKU: TGR6000
Availability: OutOfStock

Part Number : TGR6000

A 6GHz maximum frequency RF signal generator with a modest price tag is the TGR6000. It saves the expenditures involved with adding modulations and is designed for CW (carrier wave) applications where modulation is not required. Low spurii, low leakage, and low residual FM all go hand in hand with low phase noise. For greater accuracy, an external frequency reference can be utilised; the internal timebase offers a 1ppm stability.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Display	20 character x 4 row backlit alphanumeric LCD
Frequency (Hz)	10MHz to 6000MHz
Operating Temperature	+5°C to +40°C, 20% to 80% RH
Power	110-240VAC 10% 50/60Hz; 100-120VAC 10% 400Hz; 60VA max. Installation Category II.
Resolution	10Hz
Storage Temperature	-20°C to +60°C
Weight	3.65 kg. (8 lb)

TGR6000 Synthesised Signal Generator 6GHz with sweep inc GPIB/RS232/LAN(LXI)
10MHz to 6000MHz frequency range
Accuracy better than 1ppm over 15 o C to 30 o C
Ageing better than 1 ppm over one year
External frequency reference input
Low phase noise and low leakage
-110dBm to +7dBm amplitude, 0.1dB steps
Amplitude entry in dBm, µV / mV, or dBµV
User compensation tables for specific test set-ups
Fast stepping sweep with dwell times down to 10ms
Internal or externally triggered sweep, lin or log, up or down
List sweep of up to 1000 points of amplitude vs frequency
Storage for 12 generator set-ups and 16 sweep lists
Compact half-rack 2U casing uses minimum bench space
Full remote control through RS232, USB, LAN or GPIB
