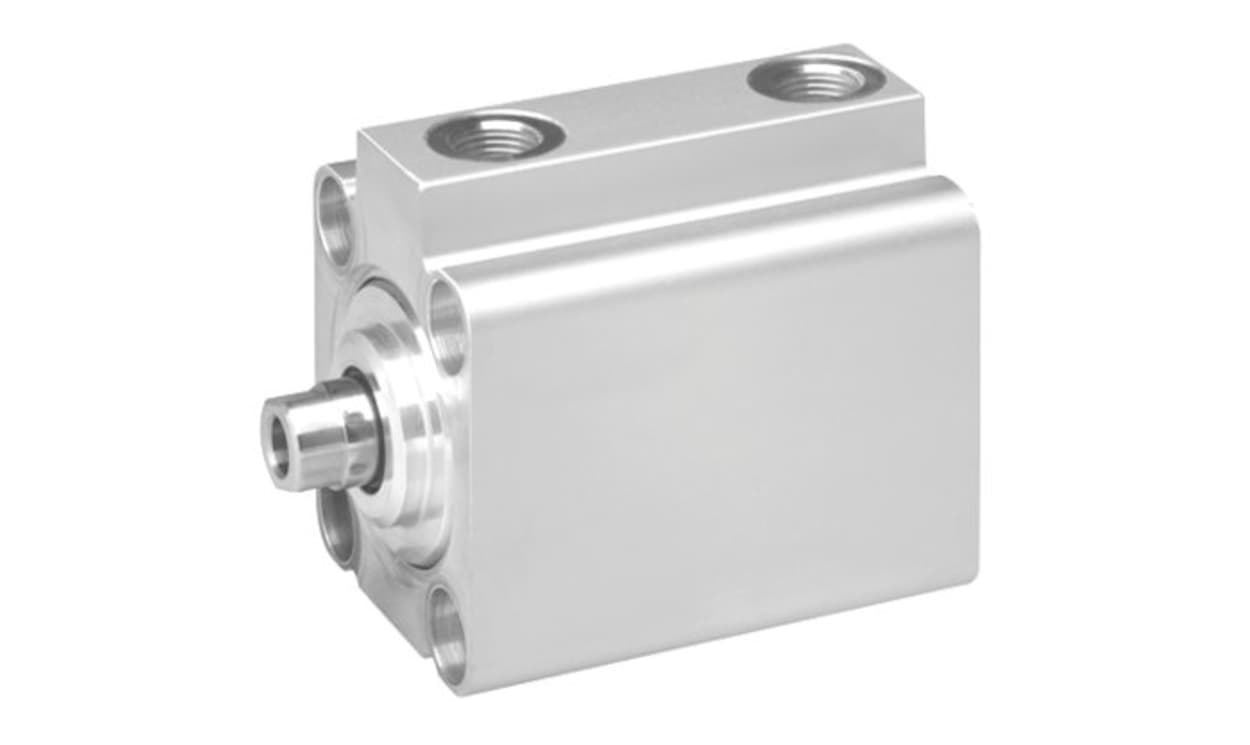

AVENTICS 0822010501 Pneumatic Compact Cylinder - 12mm Bore, 10mm Stroke, KHZ Series, Double Acting

Name: AVENTICS 0822010501 Pneumatic Compact Cylinder - 12mm Bore, 10mm Stroke, KHZ Series, Double Acting
Brand: Aventics
SKU: 0822010501
Availability: OutOfStock

Part Number : 0822010501

Availability: Sold out

Detailed Description
Specifications

Pneumatic Short Stroke Cylinders

Double Acting
Elastic cushioning
External piston rod thread 12 mm dia.
Internal piston rod thread 20 mm → 100 mm dia.
Compact dimensions

Pneumatic Short Stroke Cylinders

Brand	AVENTICS
Manufacturer Series	KHZ
Bore	12mm
Action	Double
Stroke	10mm
Port Connection	M5
Cushioning Type	Rubber
Dimensions	41 x 25 x 20mm
Width	25mm
Height	20mm
Length	41mm
Maximum Operating Pressure	10 bar
Maximum Operating Temperature	+80°C
Weight	48g
Minimum Operating Temperature	-25°C
