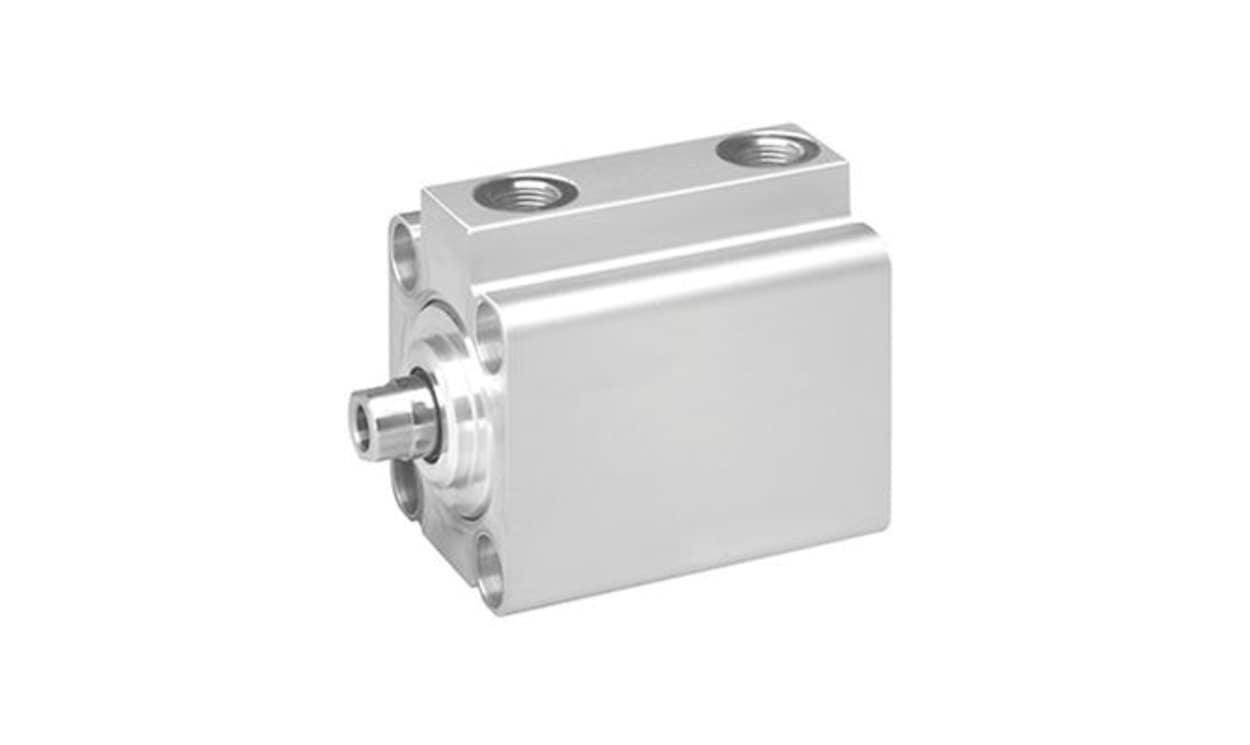

AVENTICS 0822010516 Pneumatic Piston Rod Cylinder - , 16mm Bore, 40mm Stroke, KHZ Series, Double Acting

Name: AVENTICS 0822010516 Pneumatic Piston Rod Cylinder - , 16mm Bore, 40mm Stroke, KHZ Series, Double Acting
Brand: Aventics
SKU: 0822010516
Availability: OutOfStock

Part Number : 0822010516

Availability: Sold out

Detailed Description
Specifications
Downloads

The Aventics Series KHZ short-stroke cylinder represents a pinnacle of design tailored for efficient use in constrained spaces. With its ability to deliver reliable performance under diverse conditions, this cylinder is ideal for integration into intricate machinery. Its double-acting functional principle provides consistent force application, while elastic cushioning enhances operational safety and performance longevity. The thoughtfully constructed internal mechanisms and use of high-quality materials facilitate effortless compatibility with various industrial applications, meeting stringent industry standards. It is designed to ensure minimal disruption in the workflow, offering a dependable solution to those seeking compact yet potent pneumatic options. The attention to environmental requirements and operational parameters further solidifies its standing as a trustworthy choice for industrial professionals.

Compact design for tight installation spaces
Double-acting functional principle ensures reliable operation
Elastic cushioning for enhanced safety and efficiency
High quality materials contribute to durability and performance
Compatible with a wide range of industrial applications
Meets stringent industry standards for reliability
Optimised for both ambient and compressed air medium conditions
Allows for easy integration into complex machinery

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010516
Stroke	40mm
Action	Double
Bore	16mm
Pneumatic Connection	M5
Port Connection	M5
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Minimum Operating Temperature	-25°C
Test Weight	0.063 kg
Stroke Interval Weight	0.016 @ 10 mm kg/mm
Maximum Operating Temperature	+80°C

AVENTICS 0822010516 Pneumatic Piston Rod Cylinder - , 16mm Bore, 40mm Stroke, KHZ Series, Double Acting

DOWNLOAD CATALOG

0822010516 Datasheet - 0822010516 A700000012571463
