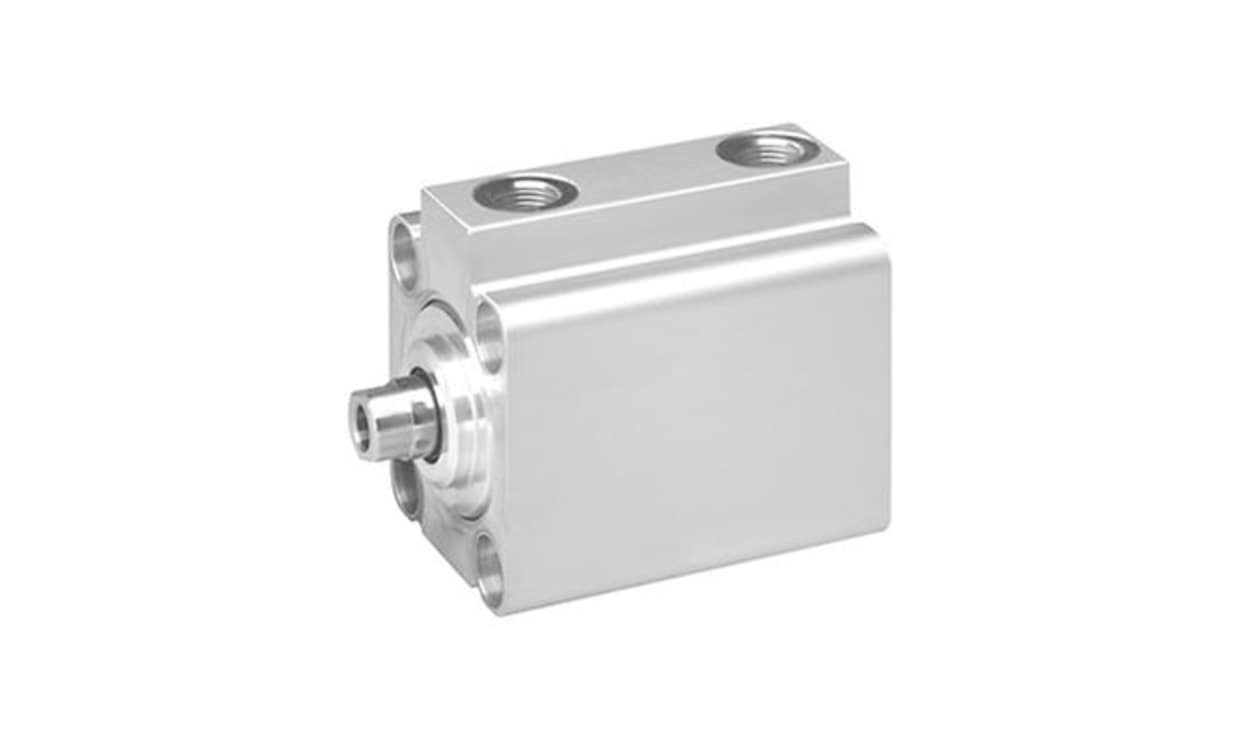

AVENTICS 0822010540 Pneumatic Piston Rod Cylinder - , 32mm Bore, 5mm Stroke, KHZ Series, Double Acting

Name: AVENTICS 0822010540 Pneumatic Piston Rod Cylinder - , 32mm Bore, 5mm Stroke, KHZ Series, Double Acting
Brand: Aventics
SKU: 0822010540
Availability: OutOfStock

Part Number : 0822010540

Availability: Sold out

Detailed Description
Specifications

The Aventics Short Stroke Cylinder, part of the series KHZ, is expertly designed to excel in tight installation spaces without compromising performance. Built from high-quality materials, its robust construction ensures durability while maintaining exceptional functionality. The cylinder operates on a double-acting functional principle, providing reliable and consistent power in various industrial applications. Ideal for automation and machinery integration, this model blends seamlessly into systems requiring precision engineering.

Stainless steel piston rod promotes corrosion resistance and longevity
Nitrile rubber piston material supports effective sealing and longevity
Scraper material made of polyurethane optimises debris management
Aluminium cylinder tube provide a lightweight yet robust structure
Compatible with compressed air mediums making it versatile for numerous applications

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010540
Bore	32mm
Stroke	5mm
Action	Double
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Test Weight	0.195 kg
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-25°C
Stroke Interval Weight	0.042 @ 10 mm kg/mm
