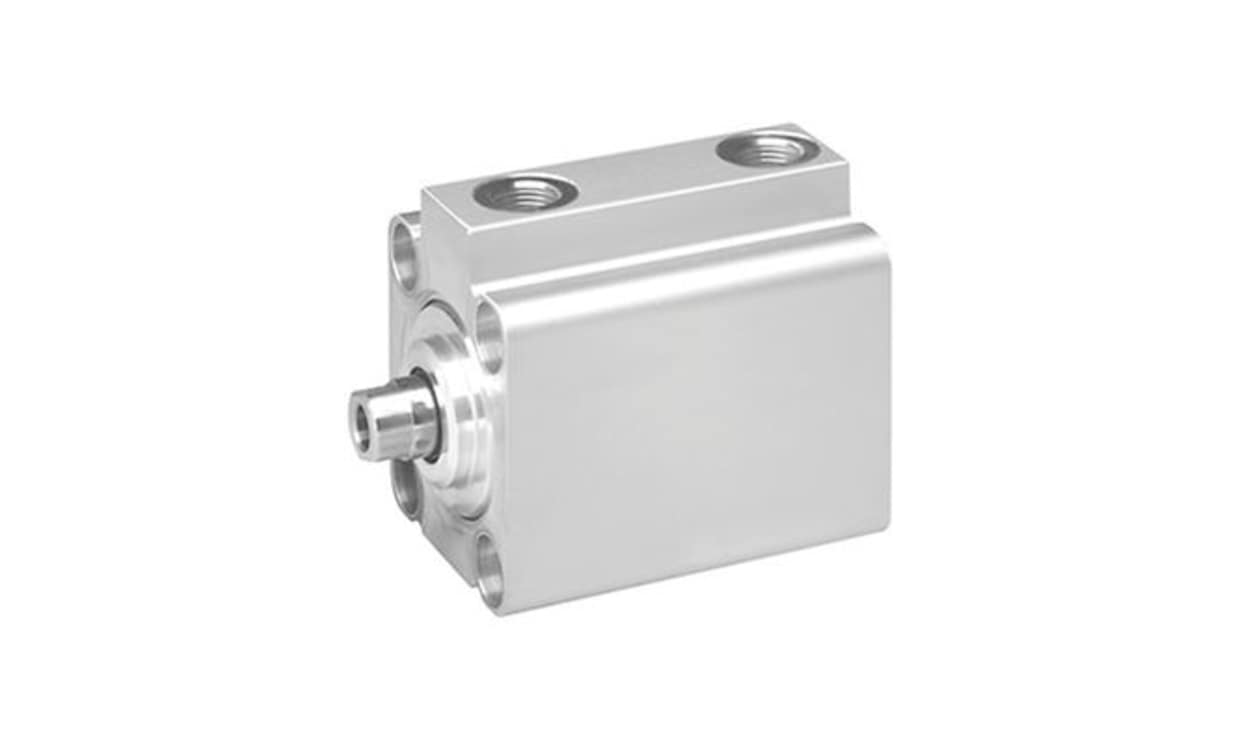

AVENTICS 0822010577 Pneumatic Piston Rod Cylinder - , 63mm Bore, 50mm Stroke, KHZ Series, Double Acting

Name: AVENTICS 0822010577 Pneumatic Piston Rod Cylinder - , 63mm Bore, 50mm Stroke, KHZ Series, Double Acting
Brand: Aventics
SKU: 0822010577
Availability: OutOfStock

Part Number : 0822010577

Availability: Sold out

Detailed Description
Specifications

The Aventics short-stroke cylinder from the series KHZ is designed to excel in environments with limited installation space, making it an ideal solution for various industrial applications. Crafted with precision, this non-standard cylinder guarantees a seamless integration within machinery, ensuring reliable and safe operation. The innovative design incorporates a double-acting functional principle, providing robust performance and durability. Coupled with elastic cushioning, it effectively minimises impact, enhancing overall equipment life. This cylinder not only meets but exceeds industry standards, making it a trusted choice in production lines worldwide.

Ideal for tight installation spaces and environments
Ensures safe and easy integration into existing systems
Features a double-acting operation for efficient performance
Incorporates elastic cushioning to reduce impact wear
Constructed to meet stringent industry standards
Robust design promotes longevity in demanding conditions
Optimised for use with compressed air to enhance functionality
Available in various sizes to suit diverse application needs

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010577
Bore	63mm
Stroke	50mm
Action	Double
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Test Weight	0.636 kg
Maximum Operating Temperature	+80°C
Stroke Interval Weight	0.096 @ 10 mm kg/mm
Minimum Operating Temperature	-25°C
