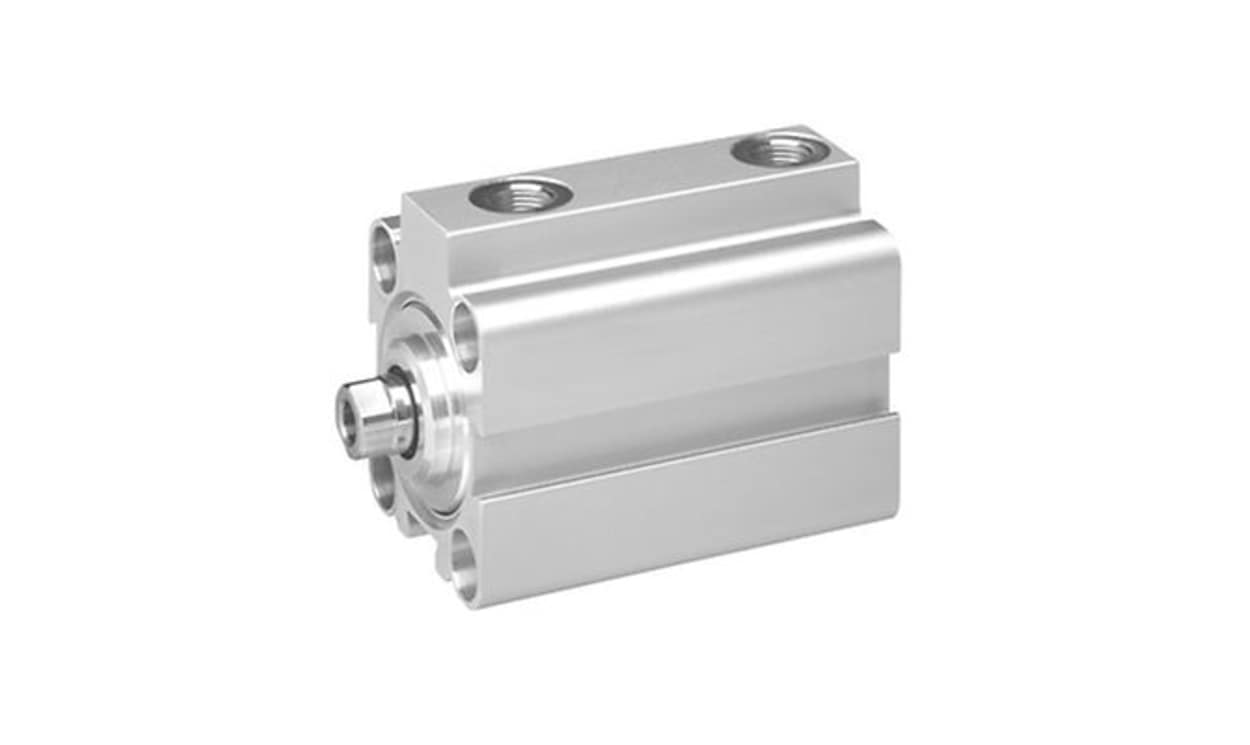

AVENTICS 0822010661 Pneumatic Piston Rod Cylinder - , 50mm Bore, 10mm Stroke, KHZ Series, Double Acting
- Detailed Description
- Specifications
- Downloads
Ensures easy and safe machinery integration
Constructed with high-quality materials for enhanced durability
Meets industry-standard environmental requirements
Features elastic cushioning for reduced impact forces
Offers double-acting functionality for versatile application
Capable of operating in extreme temperature ranges
Provides consistent performance under varying pressure conditions
Compatible with a range of accessories for tailored solutions
| Brand | AVENTICS |
| Manufacturer Series | KHZ |
| Model Number p | 0822010661 |
| Bore | 50mm |
| Stroke | 10mm |
| Action | Double |
| Pneumatic Connection | G 1/8 |
| Port Connection | G 1/8 |
| Piston Rod Thread Gender | Female |
| Cushioning Type | Elastic |
| Maximum Operating Pressure | 10 bar |
| Test Weight | 0.388 kg |
| Stroke Interval Weight | 0.074 @ 10 mm kg/mm |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -25°C |
