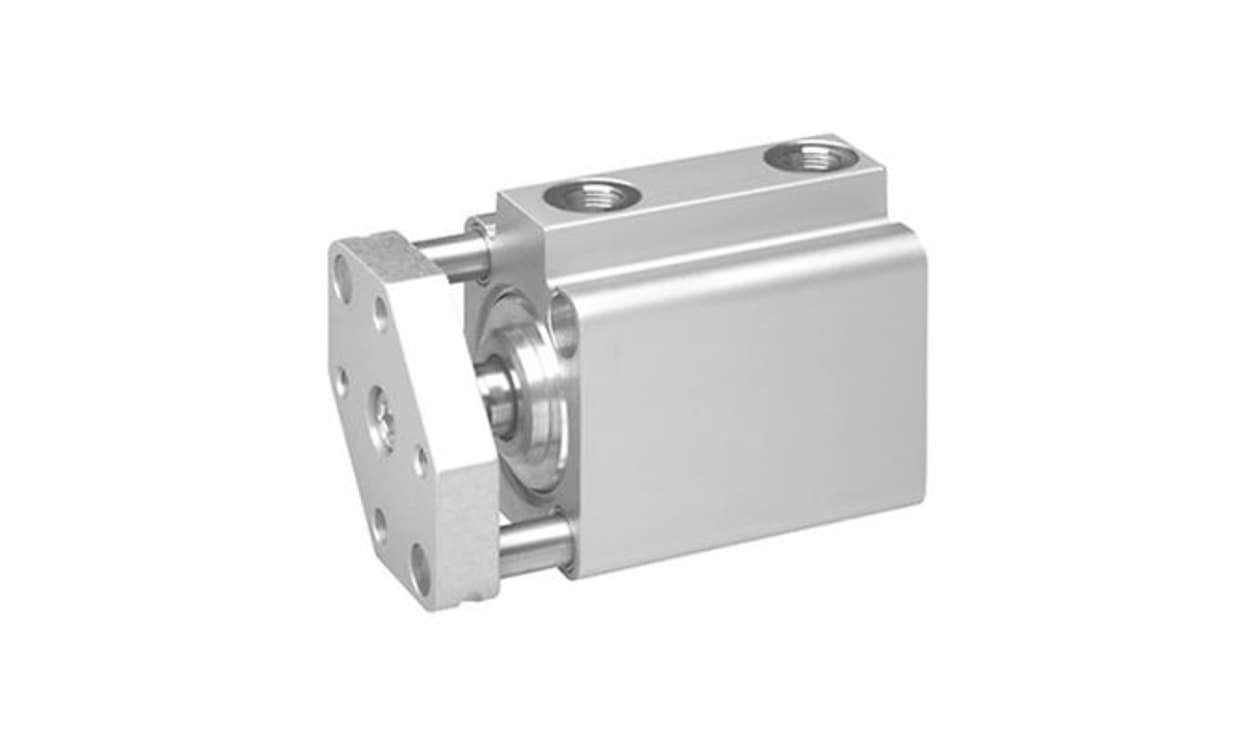

AVENTICS 0822010762 Pneumatic Piston Rod Cylinder - , 50mm Bore, 15mm Stroke, KHZ Series, Double Acting

Name: AVENTICS 0822010762 Pneumatic Piston Rod Cylinder - , 50mm Bore, 15mm Stroke, KHZ Series, Double Acting
Brand: Aventics
SKU: 0822010762
Availability: OutOfStock

Part Number : 0822010762

Availability: Sold out

Detailed Description
Specifications

The Aventics short-stroke cylinder from the Series KHZ is expertly designed for applications that require compact solutions in tight installation spaces. It offers double-acting functionality, ensuring reliable performance and efficient operation in various industrial environments. The non-standard dimensions accommodate seamless integration into machinery, while the elastic cushioning feature enhances user experience by providing shock absorption. Its construction from durable materials like stainless steel and aluminium underscores its robustness, promoting longevity and reliable performance under pressure. This cylinder’s operational capabilities are effectively matched with stringent environmental requirements, making it ideal for a range of industrial applications. Its precision engineering guarantees that you won't compromise on performance or quality.

Designed specifically for applications with limited space constraints
Double-acting functional principle for versatile use
Robust construction ensures resilience and longevity
Elastic cushioning mitigates shock impacts during operation
High operational pressures enhance efficiency in demanding tasks
Easy integration into existing machinery provides user convenience
Resistant to a wide range of ambient temperatures
Complies with industry standards, ensuring reliability
Utilises approved oils to maintain optimal performance
Minimal maintenance requirements support long-term reliability

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010762
Bore	50mm
Stroke	15mm
Action	Double
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Test Weight	0.388 kg
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C
Stroke Interval Weight	0.086 @ 10 mm kg/mm
