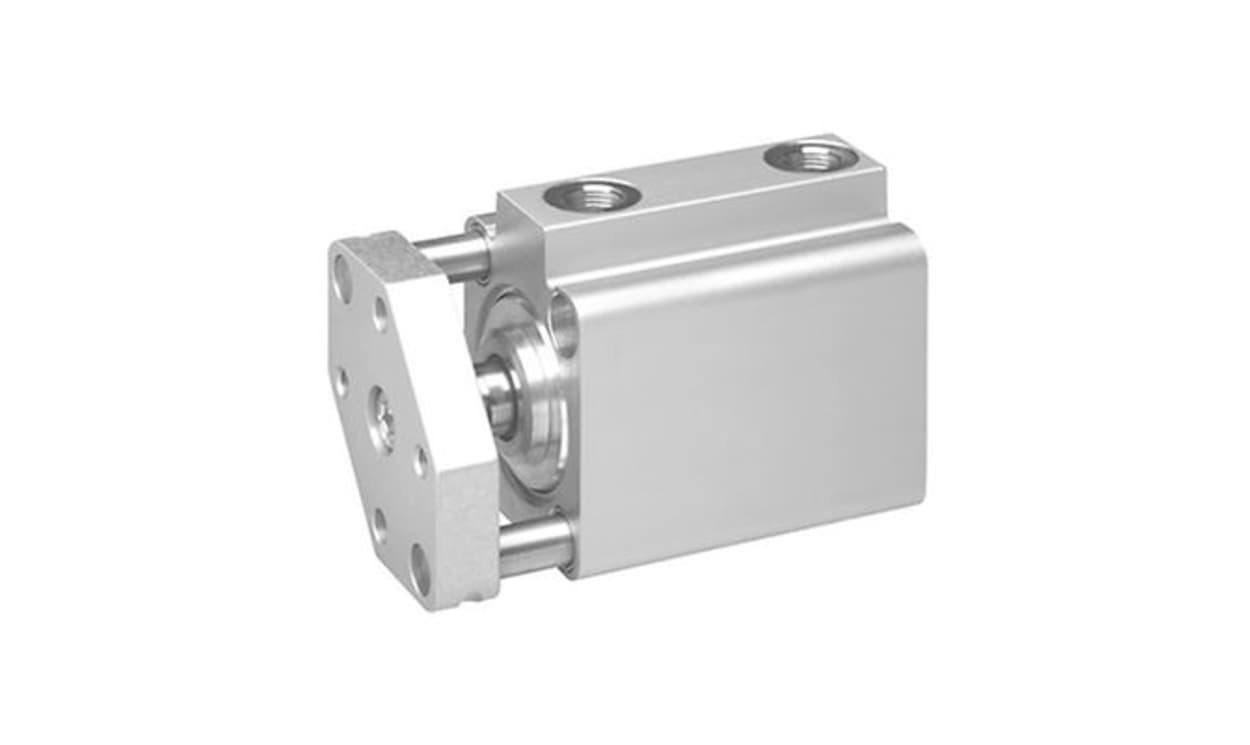

AVENTICS 0822010773 Pneumatic Piston Rod Cylinder - , 63mm Bore, 20mm Stroke, KHZ Series, Double Acting

Client Protection

Dedicated Support

Client Protection

Dedicated Support

AVENTICS 0822010773 Pneumatic Piston Rod Cylinder - , 63mm Bore, 20mm Stroke, KHZ Series, Double Acting

Name: AVENTICS 0822010773 Pneumatic Piston Rod Cylinder - , 63mm Bore, 20mm Stroke, KHZ Series, Double Acting
Brand: Aventics
SKU: 0822010773
Availability: OutOfStock

Part Number : 0822010773

Availability: Sold out

Detailed Description
Specifications

The Aventics short-stroke cylinder, Series KHZ, is expertly engineered for industries that demand precision in confined spaces. This compact cylinder excels in functionality, offering reliable performance in various applications while ensuring seamless integration within machinery. The double-acting design optimises efficiency, enabling swift operation with minimal installation footprint. With robust materials and an industry-standard environmental rating, this cylinder is built to withstand the rigours of industrial use. Its maximum working pressure of 10 bar and extensive temperature range guarantees adaptability in diverse environments. The Series KHZ is not just a cylinder

it’s a solution tailored for professionals seeking high-performance equipment in compact designs.

Designed for tight installation spaces, ensuring flexibility in machinery design
Double-acting functional principle enhances operational efficiency
Constructed from durable materials to withstand demanding industrial conditions
Standard elastomeric cushioning provides a smoother operation
Non-rotating piston rod mechanism offers stability in movement
Wide range of ambient and medium temperatures for versatility in applications
Minimal maintenance required due to its robust construction
Offers compatibility with compressed air, optimising functionality
Low weight enhances ease of handling and installation
Maximises performance with minimal impact energy, ensuring longevity

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010773
Stroke	20mm
Action	Double
Bore	63mm
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Stroke Interval Weight	0.114 @ 10 mm kg/mm
Test Weight	0.636 kg
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C
