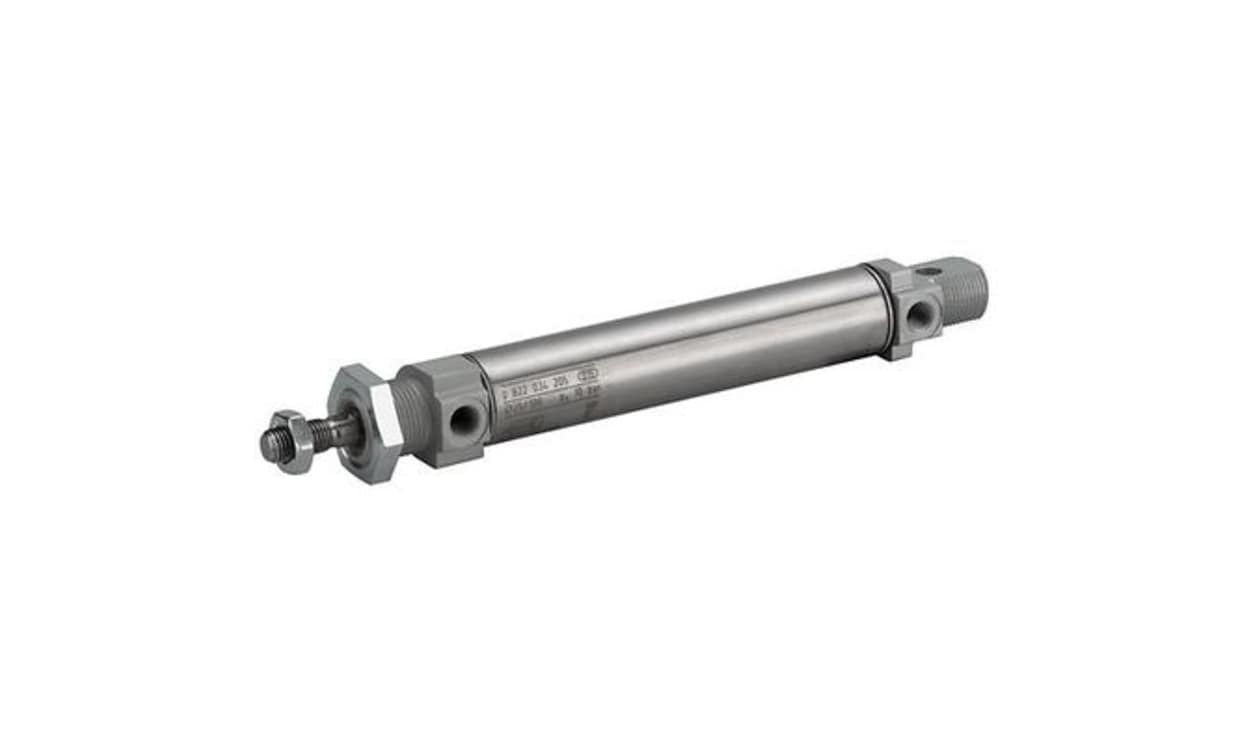

AVENTICS 0822034211 Roundline Cylinder - , 25mm Bore, 400mm Stroke, MNI Series, Double Acting

Name: AVENTICS 0822034211 Roundline Cylinder - , 25mm Bore, 400mm Stroke, MNI Series, Double Acting
Brand: Aventics
SKU: 0822034211
Availability: OutOfStock

Part Number : 0822034211

Availability: Sold out

Detailed Description
Specifications

The Aventics mini cylinder from the aventics Series MNI is designed for general machine construction, combining robust performance with an extended service life. Engineered to meet ISO 6432 standards, it provides reliable operation in various industrial applications. Its double-acting functional principle ensures efficient operation, while the elastic cushioning enhances responsiveness and control. With a maximum stroke of 1300 mm and a piston diameter of 25 mm, this cylinder adapts easily to your system's requirements. Constructed from high-quality materials, including stainless steel and aluminium, it guarantees durability and resistance to wear, making it an ideal choice for demanding environments. The cylinder's ATEX certification also offers additional safety for potentially explosive atmospheres, making it suitable for diverse operational demands. Trust in the unparalleled engineering of this mini cylinder to elevate your machinery’s performance.

Designed for compatibility with various machine configurations
Promotes energy efficiency with low impact energy consumption
Suitable for environments with temperatures ranging from -25 °C to 80 °C
Fitted with standard industry scrapers for optimal performance
Constructed from premium materials, ensuring longevity and reliability
Offers both pressure and environmental adaptability
Configurable options for ATEX-certified applications available
Facilitates simple installation and integration into existing systems

Brand	AVENTICS
Manufacturer Series	MNI
Model Number p	0822034211
Stroke	400mm
Bore	25mm
Action	Double
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Male
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-25°C
