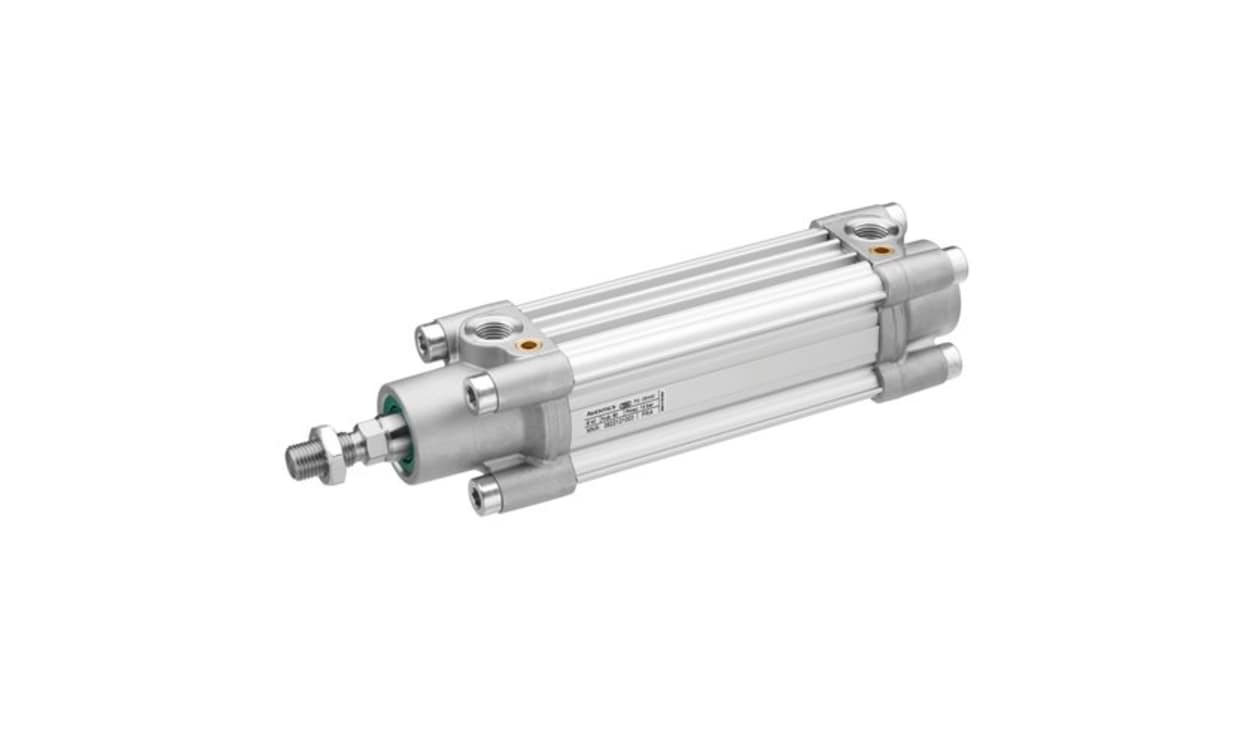

AVENTICS 0822122004 Pneumatic Piston Rod Cylinder - 50mm Bore, 100mm Stroke, PRA Series, Double Acting

Name: AVENTICS 0822122004 Pneumatic Piston Rod Cylinder - 50mm Bore, 100mm Stroke, PRA Series, Double Acting
Brand: Aventics
SKU: 0822122004
Availability: OutOfStock

Part Number : 0822122004

Availability: Sold out

Detailed Description
Specifications

PRA ISO Profile Cylinder

Pneumatic profile cylinders 32 - 125 mm diameters to ISO15552

Double Acting
Magnetic poston
Adjustable pneumatic cushioning
External piston rod thread

SerRexroth PRA ISO Profile Cylinder

Brand	AVENTICS
Manufacturer Series	PRA
Action	Double
Bore	50mm
Stroke	100mm
Port Connection	G 1/4
Cushioning Type	Rubber
Dimensions	206 x 65 x 65mm
Height	65mm
Length	206mm
Width	65mm
Maximum Operating Pressure	10 bar
ISO Standard	15552
Maximum Operating Temperature	+80°C
Weight	1.5kg
Minimum Operating Temperature	-20°C
