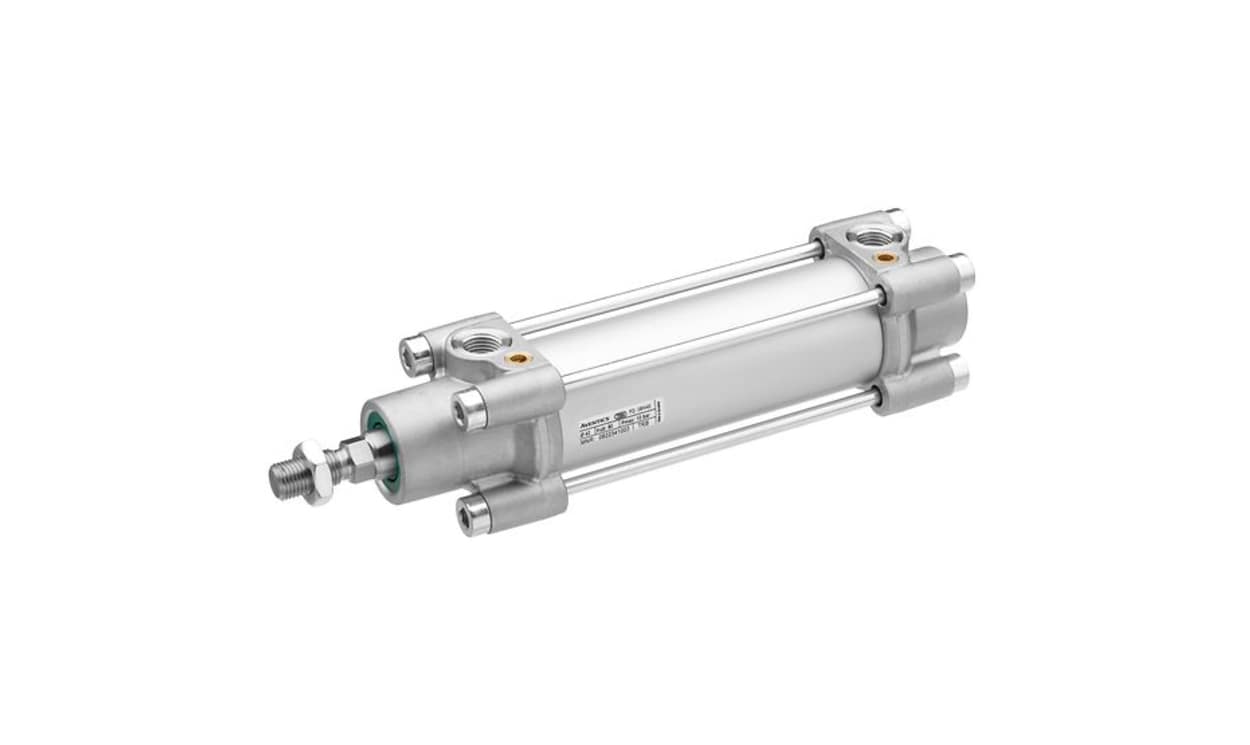

AVENTICS 0822242405 Pneumatic Guided Cylinder - , 50mm Bore, 160mm Stroke, TRB Series, Double Acting

Client Protection

Dedicated Support

Client Protection

Dedicated Support

AVENTICS 0822242405 Pneumatic Guided Cylinder - , 50mm Bore, 160mm Stroke, TRB Series, Double Acting

Name: AVENTICS 0822242405 Pneumatic Guided Cylinder - , 50mm Bore, 160mm Stroke, TRB Series, Double Acting
Brand: Aventics
SKU: 0822242405
Availability: OutOfStock

Part Number : 0822242405

Availability: Sold out

Detailed Description
Specifications

The Aventics tie rod cylinder from the ISO 15552 series is engineered for outstanding performance in demanding industrial settings. This exceptional product is designed to withstand rigorous operating conditions, making it ideal for heavy-duty applications in sectors such as automotive, steel, wood, and mining. With a robust construction and high reliability, it ensures maximum efficiency and safety right where it matters most. Its double-acting functional principle guarantees effective action in both directions, while the adjustable pneumatic cushioning allows for smooth operation, enhancing longevity. The environmental requirements meet industry standards, ensuring that this cylinder functions optimally across different temperatures and ambient conditions, making it a reliable choice for various applications.

Engineered for use in heavy-duty industrial applications
Double-acting design provides comprehensive operational efficiency
Pneumatic adjustable cushioning enhances operational smoothness
Constructed to meet stringent environmental and heat resistance standards
Stainless steel piston rod offers superior durability
Fluorocaoutchouc scraper material ensures long-lasting performance
Minimises maintenance requirements with a low wear design
Compact dimensions allow for versatile installation options

Brand	AVENTICS
Manufacturer Series	TRB
Model Number p	0822242405
Stroke	160mm
Bore	50mm
Action	Double
Pneumatic Connection	G 1/4
Port Connection	G 1/4
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	15552
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+150°C
