AVENTICS 0822332508 Roundline Cylinder - , 16mm Bore, 200mm Stroke, MNI Series, Double Acting

Name: AVENTICS 0822332508 Roundline Cylinder - , 16mm Bore, 200mm Stroke, MNI Series, Double Acting
Brand: Aventics
SKU: 0822332508
Availability: OutOfStock

Part Number : 0822332508

Availability: Sold out

Detailed Description
Specifications
Downloads

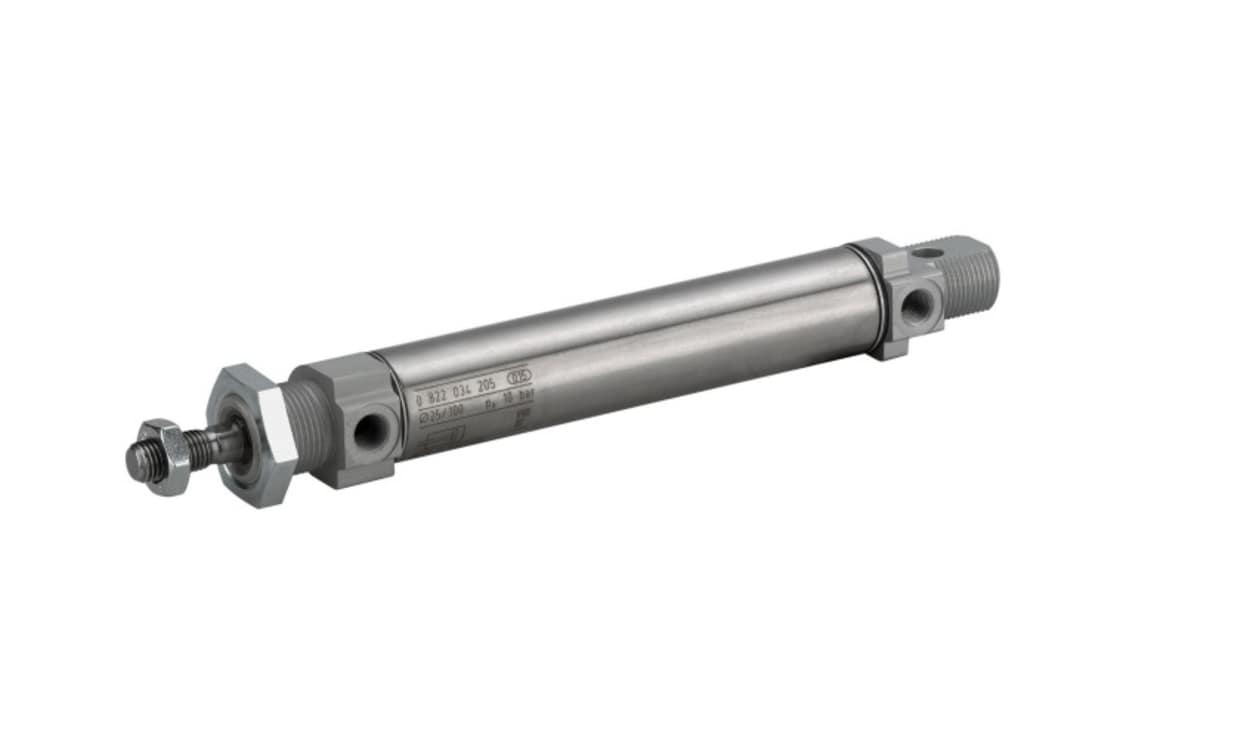

The Aventics Series MNI Mini cylinder (ISO 6432) is meticulously designed for general machine construction, showcasing a robust build and a long service life. Engineered to meet industrial standards, this double-acting cylinder provides versatility and reliability in handling various applications. Its compact size optimises space without compromising performance, making it an ideal choice for those seeking efficiency combined with strength. Additionally, it offers pneumatic adjustable cushioning, ensuring smooth operation even under high pressure. The Series MNI is not only effective in reducing wear and tear but also enhances the overall functionality of your machinery. With exceptional environmental adaptability, it can thrive in temperatures ranging from -25 °C to 80 °C, proving its reliability in diverse settings.

Designed for ISO 6432 compatibility, ensuring universal application
Double-acting configuration enhances operational efficiency
Pneumatic adjustable cushioning provides optimal performance and longevity
Robust materials ensure durability in demanding environments
Operates effectively under a broad temperature range for versatile usage
Compact design enables easy integration into existing systems
ATEX certification available for hazardous environments
Simplifies installation with standardised ports and threads

Brand	AVENTICS
Manufacturer Series	MNI
Model Number p	0822332508
Bore	16mm
Stroke	200mm
Action	Double
Port Connection	M5
Pneumatic Connection	M5
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-25°C
