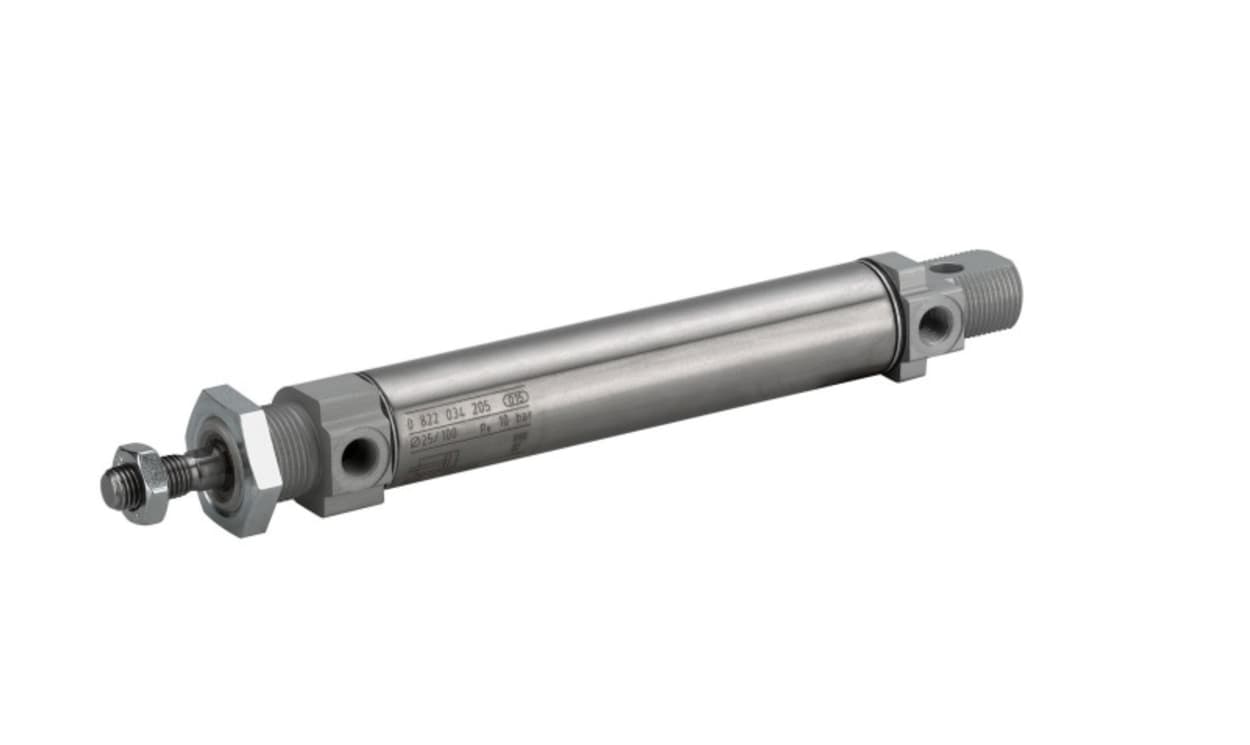

AVENTICS 0822332511 Roundline Cylinder - , 16mm Bore, 400mm Stroke, MNI Series, Double Acting

Client Protection

Dedicated Support

Client Protection

Dedicated Support

AVENTICS 0822332511 Roundline Cylinder - , 16mm Bore, 400mm Stroke, MNI Series, Double Acting

Name: AVENTICS 0822332511 Roundline Cylinder - , 16mm Bore, 400mm Stroke, MNI Series, Double Acting
Brand: Aventics
SKU: 0822332511
Availability: OutOfStock

Part Number : 0822332511

Availability: Sold out

Detailed Description
Specifications

The Aventics Mini cylinder, Series MNI, is expertly designed for general machine construction, featuring a robust build and exceptional longevity. With its compliance to ISO 6432 standards, this double-acting cylinder is engineered to deliver reliable performance across various industrial applications. The compact size, combined with meticulously crafted components, ensures optimal functionality and ease of integration into existing systems. The innovative pneumatic adjustable cushioning enhances smooth operations, making it suitable for delicate applications. Coupled with its stainless steel and aluminium construction, the MNI Mini cylinder guarantees both durability and resistance to wear, paving the way for enhanced productivity in demanding environments. With a wide operational temperature range and ATEX optional certification, this cylinder caters to varied operational needs while upholding safety standards.

Designed for versatility in machine construction
Double-acting mechanism ensures dynamic performance
Pneumatic adjustable cushioning for enhanced operational smoothness
Compact geometry facilitates easy installation in constrained spaces
Durable stainless steel and aluminium materials reduce the need for maintenance
Wide temperature tolerance maximises operational efficiency
Optional ATEX certification addresses hazardous environments
Lightweight design improves handling and reduces load stress
Minimal oil content requirements ensure cleaner operations
Compliant with industry standards for guaranteed quality

Brand	AVENTICS
Manufacturer Series	MNI
Model Number p	0822332511
Action	Double
Stroke	400mm
Bore	16mm
Pneumatic Connection	M5
Port Connection	M5
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-25°C
