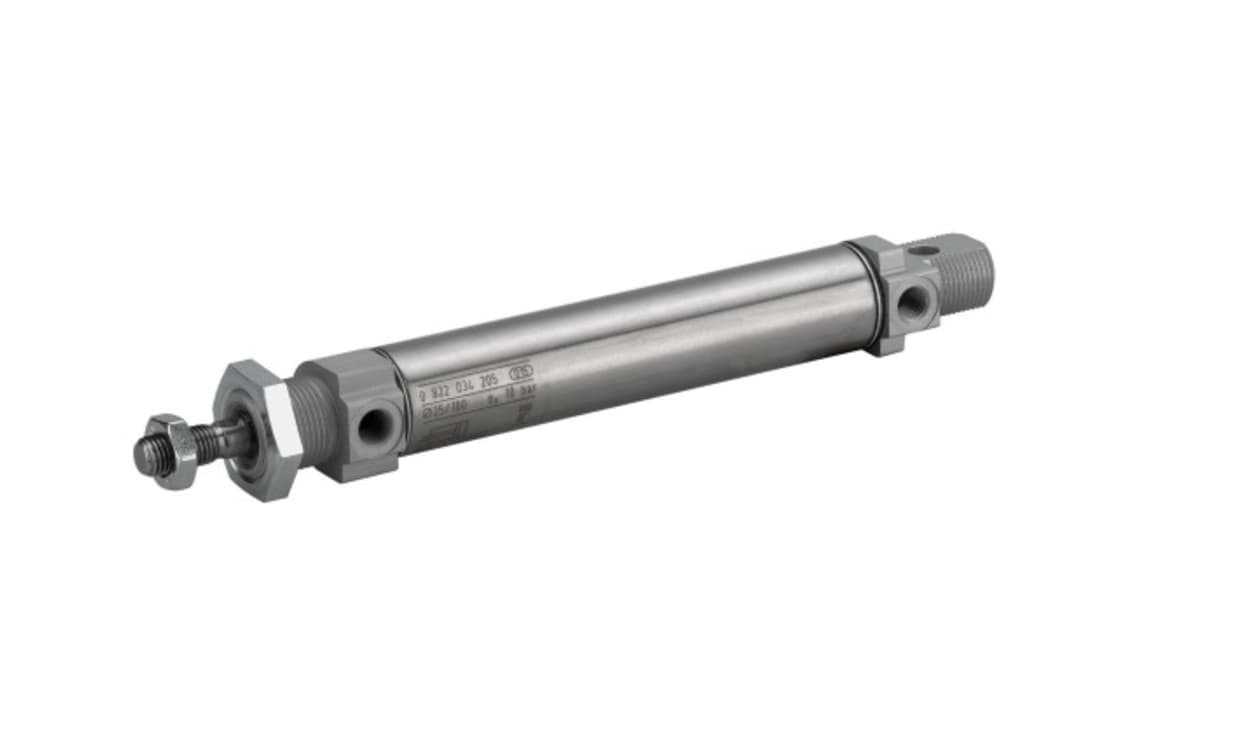

AVENTICS 0822333210 Roundline Cylinder - , 20mm Bore, 320mm Stroke, MNI Series, Double Acting
- Detailed Description
- Specifications
Double-acting functional principle allows efficient operation
Elastic cushioning enhances stability during movement
Wide operating temperature range accommodates diverse applications
Lightweight design facilitates easy installation and handling
Compatible with ATEX standards for added safety in hazardous environments
Magnetic piston offers enhanced functionality with sensors
Brand | AVENTICS |
Manufacturer Series | MNI |
Model Number p | 0822333210 |
Bore | 20mm |
Stroke | 320mm |
Action | Double |
Pneumatic Connection | G 1/8 |
Port Connection | G 1/8 |
Piston Rod Thread Gender | Male |
Cushioning Type | Elastic |
Maximum Operating Pressure | 10 bar |
ISO Standard | ISO 6432 |
Maximum Operating Temperature | +80°C |
Minimum Operating Temperature | -25°C |
