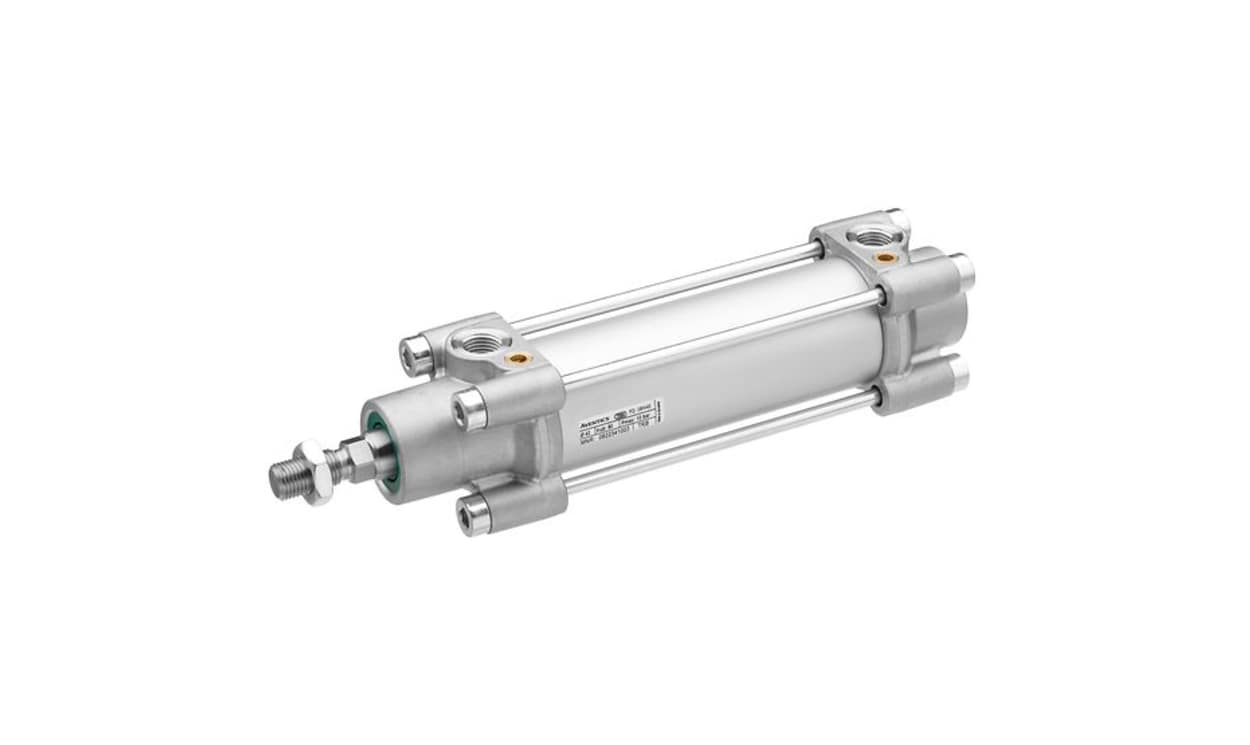

AVENTICS 0822341009 | TRB Pneumatic Guided Cylinder | 40 mm Bore, 320 mm Stroke, Double Acting

Name: AVENTICS 0822341009 | TRB Pneumatic Guided Cylinder | 40 mm Bore, 320 mm Stroke, Double Acting
Brand: Aventics
SKU: 0822341009
Availability: InStock

Part Number : 0822341009

320 mm of stroke on a 40 mm bore: that is the AVENTICS 0822341009, a double-acting guided cylinder from the TRB range. Listed features: pneumatic cushioning, G 1/4 ports and ISO 15552 conformity.

Size: 40 mm bore x 320 mm stroke
TRB series double-acting cylinder, part 0822341009
Part 0822341009 pressure rating: 10 bar maximum
Temperature -20 to +80 °C (320 mm stroke)
Piston rod: male thread (40 mm x 320 mm)

Availability: low stock

Detailed Description
Specifications
Downloads

The Aventics tie rod cylinder ISO 15552, Series TRB, represents a versatile solution for heavy-duty industrial applications. Designed for reliability and performance, this cylinder caters to sectors such as automotive, mining, and machinery. It is engineered to handle demanding conditions, ensuring both efficiency and durability. With a double-acting functional principle, it supports precise movement control and effective cushioning. The ISO 15552 standard guarantees compatibility across various systems, providing seamless integration into existing setups. Its robust construction and a variety of configuration options make this cylinder an excellent choice for businesses needing dependable performance in critical operations.

Optimised for heavy-duty industry applications, ensuring lasting reliability
ISO 15552 compliance facilitates easy integration into various systems
Double-acting design enhances operational efficiency and control
Pneumatic adjustable cushioning allows for tailored performance
Temperature resilience from -20 °C to 80 °C supports diverse environments
Lightweight yet robust design contributes to space-saving and ease of installation
Available ATEX certification assures safety in hazardous environments
A comprehensive range of dimensions accommodates various operational needs

Brand	AVENTICS
Manufacturer Series	TRB
Model Number p	0822341009
Action	Double
Stroke	320mm
Bore	40mm
Port Connection	G 1/4
Pneumatic Connection	G 1/4
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	15552
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C

AVENTICS 0822341009 | TRB Pneumatic Guided Cylinder | 40 mm Bore, 320 mm Stroke, Double Acting

DOWNLOAD CATALOG

0822341009 Datasheet - 0822341009 A700000012559708

0822341009 Datasheet - 0822341009 A700000012561363
