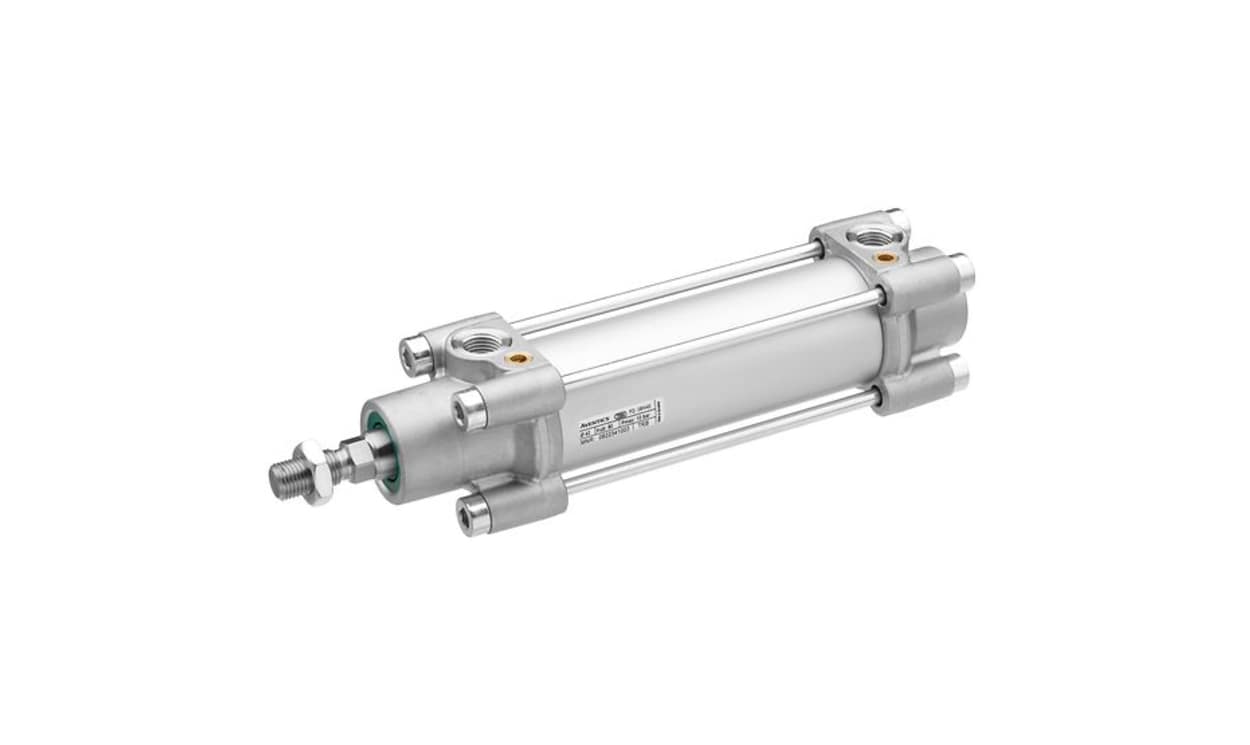

AVENTICS 0822345004 Pneumatic Piston Rod Cylinder - , 100mm Bore, 100mm Stroke, TRB Series, Double Acting

Name: AVENTICS 0822345004 Pneumatic Piston Rod Cylinder - , 100mm Bore, 100mm Stroke, TRB Series, Double Acting
Brand: Aventics
SKU: 0822345004
Availability: OutOfStock

Part Number : 0822345004

Availability: Sold out

Detailed Description
Specifications

The Aventics tie rod cylinder, compliant with ISO 15552, is specifically designed for demanding industrial applications where reliability and performance are essential. The AVENTICS Series TRB features a robust construction suitable for harsh environments, making it a preferred choice in sectors such as heavy-duty machinery, automotive, and mining. With a double-acting functional principle, this cylinder delivers remarkable force generation coupled with adjustable pneumatic cushioning. Its versatile design accommodates a maximum stroke length of 2800 mm, ensuring optimal adaptability for various operational needs. The cylinder's environment-resistant materials guarantee longevity and consistent performance, while its precise technical specifications make installation and integration straightforward.

Crafted for heavy-duty applications, ensuring durability under stress
Double-acting design maximises efficiency and versatility
Pneumatic adjustable cushioning for tailored operation
Constructed with industry-standard materials to withstand challenging conditions
Integrated magnetic piston enhances functionality and positioning
Designed with precision for easy installation in diverse settings
Compatible with ATEX certification for safe use in explosive environments
A comprehensive range of stroke options caters to various operational demands
Minimal temperature and pressure variations extend operational life

Brand	AVENTICS
Manufacturer Series	TRB
Model Number p	0822345004
Bore	100mm
Action	Double
Stroke	100mm
Pneumatic Connection	G 1/2
Port Connection	G 1/2
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	15552
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C
