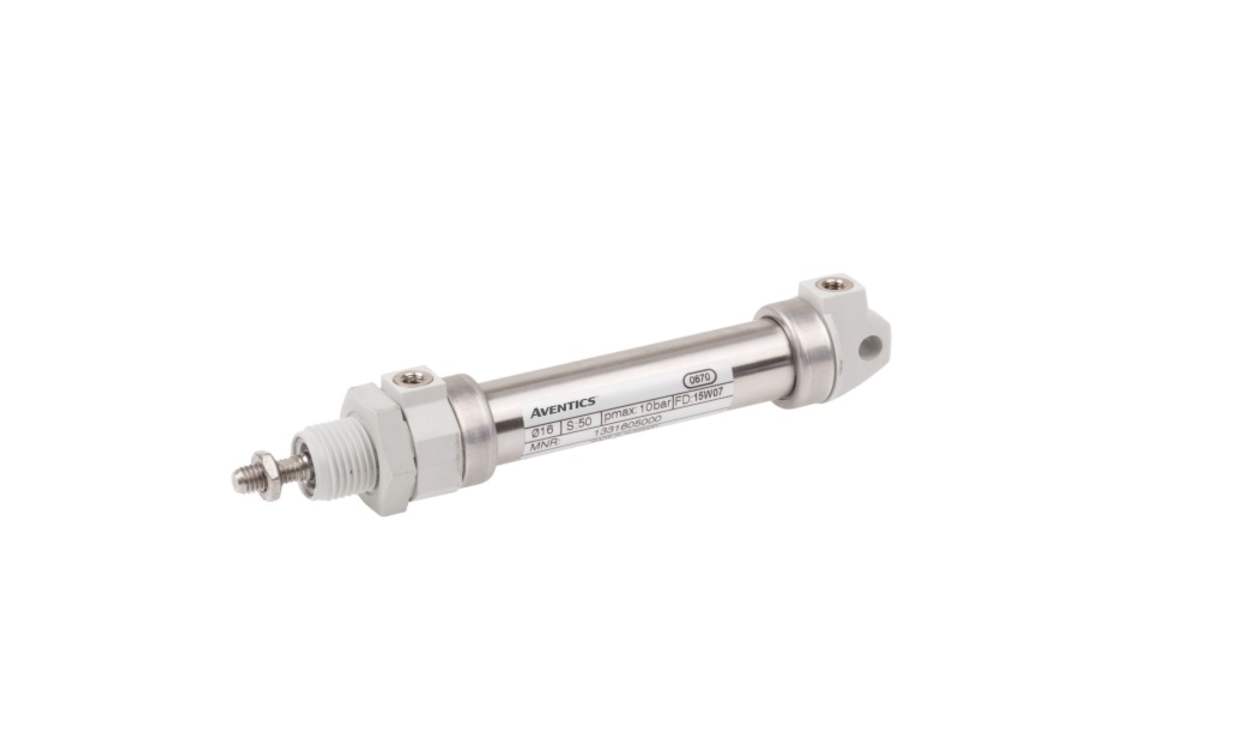

AVENTICS 1331602000 Roundline Cylinder - , 16mm Bore, 25mm Stroke, ICM Series, Double Acting
- Detailed Description
- Specifications
Designed specifically for food processing applications
Double-acting mechanism provides efficient operation
Lightweight construction for easy installation and handling
Includes elastic cushioning for optimal performance and reduced wear
Compliant with ISO 6432 industrial standards
Wide temperature range accommodates various environmental conditions
Precision-engineered parts guarantee high reliability
Versatile mounting options to suit diverse installation needs
Magnetic piston enhances functionality in automation systems
Brand | AVENTICS |
Manufacturer Series | ICM |
Model Number p | 1331602000 |
Stroke | 25mm |
Bore | 16mm |
Action | Double |
Pneumatic Connection | M5 |
Port Connection | M5 |
Piston Rod Thread Gender | Male |
Cushioning Type | Elastic |
Maximum Operating Pressure | 10 bar |
ISO Standard | ISO 6432 |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +70°C |
